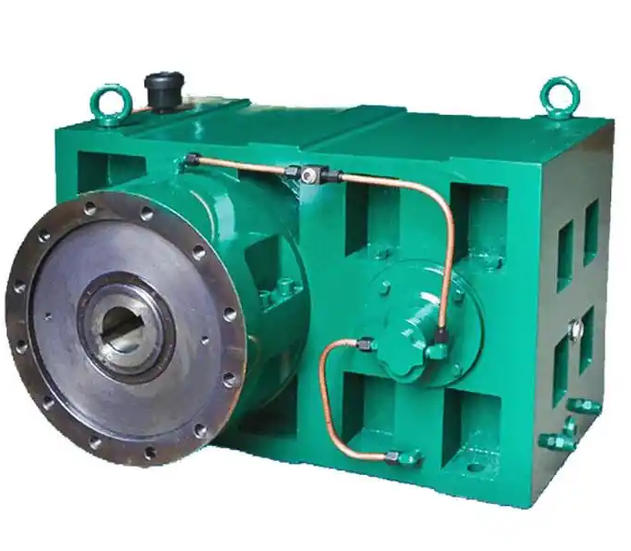

Why does ZLYJ reducer become a standard equipment for granulators? Analysis of Core Advantages

1. Strong impact resistance and high load-bearing capacity

During the granulation process, especially when dealing with recycled materials, impurities may be mixed in the materials, leading to sudden changes in the load. The ZLYJ reducer adopts high-precision hard tooth surface gears. The gears and shaft parts are made of high-strength alloy steel and processed through processes such as carburizing, quenching, and grinding. The tooth surface hardness can reach HRC54-62. This hard tooth surface design endows the gearbox with excellent impact resistance, which can effectively cope with instantaneous high torque and overload conditions, protect the internal transmission system, and reduce the failure rate.

2. Specially designed to withstand axial thrust of screws

When the granulator is working, the screw will generate a huge axial thrust. The ZLYJ reducer is specially equipped with oversized high thrust bearings at the front end of the hollow output shaft to withstand the axial force during screw operation. This targeted design is not available in ordinary reducers, ensuring stable operation of the equipment under long-term high loads.

3. Smooth transmission ensures product quality

The granulator requires a uniform extrusion process speed, and any transmission fluctuations may lead to uneven discharge or a decrease in particle quality. The hard tooth helical gear of ZLYJ reducer has the characteristic of progressive meshing, which can significantly reduce transmission impact and operating noise compared to spur gear. Its high rigidity transmission ensures a constant transmission ratio during long-term operation, thereby ensuring stable melt pressure and consistent discharge, effectively guaranteeing the quality of products such as films, pipes, or particles.

4. Compact structure and high transmission efficiency

The ZLYJ reducer adopts a compact box structure design, which has the characteristics of small volume and high load-bearing capacity. Its high-precision gear machining (accuracy up to GB10095-88 level 6) results in a transmission efficiency of over 96%. High efficiency means less energy loss, which has significant long-term economic value for granulation production lines that require 24-hour continuous operation.

5. Adapt to complex and harsh working conditions

In addition to conventional plastic granulation, ZLYJ reducers are also suitable for production lines such as rubber granulation and chemical masterbatch (color masterbatch). These operating conditions are often accompanied by frequent start stop, large load changes, or uneven material mixing. The sturdy box structure and reliable performance of ZLYJ reducer enable it to absorb the impact caused by start stop inertia, adapt to the needs of flexible production, and reduce unplanned shutdowns caused by equipment failures.

In summary, ZLYJ reducer, with its core advantages in impact resistance, high load capacity, specially equipped thrust bearings, smooth transmission, and high efficiency and energy saving, perfectly meets the complex and changing working conditions of granulators, and has become a specialized standard in this field.
