Provide some examples of selecting TPU worm gear reducers suitable for specific applications

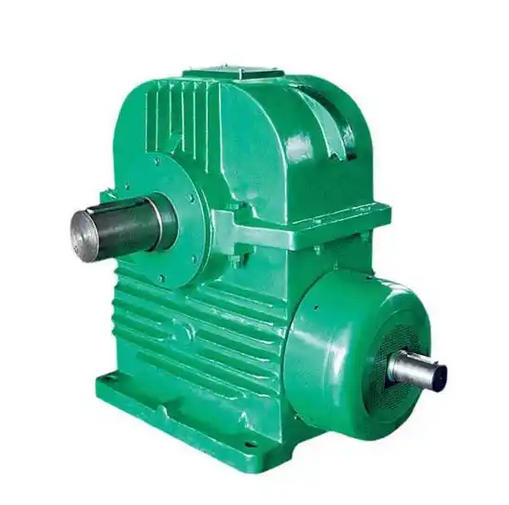

TPU worm gear reducers have a large number of successful application cases in heavy-duty scenarios such as mining and metallurgy [gf] 200c [/gf], and their high load-bearing and impact resistance characteristics make them the preferred choice for key transmission equipment.

Based on the specific application scenarios you are interested in, the following are several typical industry selection and application cases:

[gf]200c[/gf]1、 Application case of mining and excavation equipment [gf] 200c [/gf]
In large-scale mining crushers, the operating conditions are characterized by high impact, high dust, and continuous heavy load of 200c/gf. A certain mining enterprise uses a [gf] 200c [/gf] TPU500 vertical planar secondary enveloping reducer [gf] 200c [/gf], with a center distance of 500mm, a speed ratio of 40, and an allowable torque of 13500N · m. This model adopts a golden combination of chromium molybdenum steel ion nitriding worm gear (HRC ≥ 58) and centrifugally cast phosphor tin bronze worm gear, significantly improving its impact resistance and wear resistance. The vertical structure saves space, adapts to compact equipment layout, and features a large lubrication angle design to ensure effective oil film formation even under harsh working conditions. Its service life is extended by more than 30% compared to traditional reducers.

[gf]200c[/gf]2、 Application case of metallurgical continuous casting production line [gf] 200c [/gf]
The metallurgical industry requires extremely high stability and reliability of the transmission system for continuous casting machines, and they are often exposed to high temperature environments. A certain steel plant uses a TPU series flat secondary enveloping reducer [gf] 200c [/gf] on the continuous casting straightening machine, with a center distance of 315mm and a transmission ratio of 31.5. The reducer has a large load-bearing capacity and high transmission efficiency. Its multi tooth simultaneous meshing feature effectively disperses the load, runs smoothly, and has low noise. The equipment is suitable for working environments with temperatures ranging from -40 ℃ to+40 ℃, fully meeting the temperature difference requirements of the workshop. The input speed is ≤ 1500 revolutions per minute, and the motor output is accurately matched.

[gf]200c[/gf]3、 Application case of tire shaping vulcanizing machine [gf] 200c [/gf]
In the field of rubber machinery, TPU reducers are widely used in tire vulcanizing machines. This application requires a reducer [gf] 200c [/gf] with a compact structure, smooth operation, and the ability to withstand periodic loads [gf] 200c [/gf]. For vulcanizing machines with specifications ranging from 36in to 100in, single-stage TPU reducers with center to center distances of 265mm to 450mm can be selected. The toroidal worm gear pair has the characteristics of high load-bearing capacity and long service life, which can effectively control the repeated pressure and release during the vulcanization process.
