Basic Info（Rewashed Table）
|
Item
|
Parameter
|
Item
|
Parameter
|
|
Model NO.
|
YX400-2~560
|
Number of Stator
|
Three-Phase
|
|
Series
|
YX Series
|
Rotor Structure
|
Squirrel-Cage Rotor
|
|
Casing Protection
|
Totally Closed Construction
|
Number of Poles
|
2/4/6 Poles
|
|
Starting Mode
|
Direct-on-Line Startup
|
Certifications
|
ISO9001, CCC, CE
|
|
Brand
|
Changli
|
Rated Power
|
560kW
|
|
Frequency
|
50Hz / 60Hz
|
Voltage Options
|
3.3kV, 6kV, 6.3kV, 6.6kV, 10kV
|
|
Frame Size
|
400
|
Cooling Method
|
IC01
|
|
Mounting Type
|
IM1001
|
Rotation Direction
|
Clockwise / Counter-clockwise
|
|
Duty Rating
|
S1 Continuous Duty
|
Insulation Class
|
Class F
|
|
Sound Pressure Level
|
80dBA
|
Operating Ambient Temp
|
-60℃ ~ +55℃
|
|
Installation Location
|
Indoor & Outdoor Applicable
|
Bearing Brand
|
SKF
|
|
Space Heater
|
1 Set Equipped
|
Built-in Temperature Detectors
|
8 Pieces
|
|
Export Packaging
|
Standard Seaworthy Export Packing
|
Registered Trademark
|
CHANGLI
|
|
Origin
|
Made in China
|
HS Code
|
8501530090
|
|
Annual Production Capacity
|
500,000 Units
|
——
|
——
|
Product Description（Full Rewritten English, No Duplicate Original Sentence Structure）

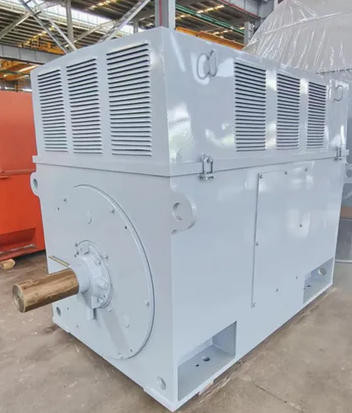

1. Product Profile
Developed and manufactured in-house by our firm, the YX series high-voltage three-phase asynchronous motor benefits from more than three decades of our professional R&D and production experience. In recent years, we have carried out comprehensive upgrades: upgraded insulation materials, adopted low-loss silicon steel sheets, optimized manufacturing craftsmanship, and redesigned internal structures. These improvements cut the overall power consumption of motors by over 20% and greatly boost energy utilization efficiency.
This motor series is built with premium raw materials and mature production workflows, featuring outstanding advantages including high energy efficiency, low vibration, steady running performance, as well as simple installation and hassle-free daily maintenance.
All power ratings, electrical characteristics, installation dimensions and tolerance standards fully conform to IEC 34-1 international standards for rotating electrical machinery, alongside universal specifications for mechanical equipment manufacturing.
The motor housing supports five protection grades: IP23, IP44, IP54, IP55 and IP56, all compliant with IEC 34-5 enclosure protection standards for rotating machines. Customized protective versions such as duct ventilated IP44 and weather-resistant IPW24 can be customized on demand; we also provide tailor-made motors to satisfy special protection level requirements.
Standard cooling types for this line cover IC01, IC81W and IC611, which meet IEC 34-6 cooling method criteria for rotating machines. We can also develop motors with alternative cooling structures for customers with unique operational needs.
Matching protection grades for different sub-models: basic YX motors adopt IP23; YXKK series (IC81W cooling) comes standard with IP44; YXKS series (IC611 cooling) uses IP44 by default. IP54, IP55 and IP56 protection levels are available as optional upgrades for all variants.
The standard assembly and mounting configuration is IMB3 horizontal foot-mounted design, complying with IEC 34-7 standards for motor mounting forms.
This specification sheet summarizes technical parameters and installation dimensions of H355~1120 frame size 6kV & 10kV motors, covering IC01, IC81W and IC611 cooling types for YX, YXKK and YXKS sub-series.
2. Application Scope
This motor line acts as driving power for all kinds of general industrial machinery, such as compressors, ventilation fans, water pumps, bulk material unloaders and transmission equipment. It serves as prime driving equipment widely used in mining operations and various industrial facilities, including chemical plants, textile mills, petrochemical workshops, metallurgy factories and power stations.
If clients place orders for motors that drive heavy inertia equipment like blowers, large coal grinders, rolling mills, crushers and belt conveyors, they need to submit relevant technical data and sign a technical agreement with our company. This agreement serves as the design benchmark for customizing motor structures, guaranteeing stable and reliable long-term operation under actual working circumstances.
