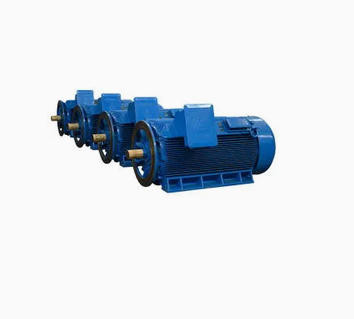

315kW YJS Series High-Voltage Electric Motor, Rib Cooled, IC411 Cooling System, 6kV Rated Voltage

INQUIRY EMAIL

1. Basic Information

Parameter	Specification	Parameter	Specification
Brand / Trademark	Changli	Model NO.	YSJ400-2-315KW
Species / Series	YJS Series	Rated Power	315 kW
Number of Stator	Three-Phase	Number of Poles	2P - 12P
Rotor Structure	Squirrel-Cage	Starting Mode	Direct on-line Starting
Frequency	50Hz	Voltage	6000V (6kV)
Frame Size	400mm	Cooling Method	IC411 / IC416
Mounting Arrangement	IMB3 / IMV1	Rotation Direction	CW / CCW
Duty Type	S1 (Continuous)	Insulation Class	F / H
Temperature Rise	Class B	Protection Level	IP55 / IP66
Winding Sensors	6 PCS × PT100	Bearing Sensors	2 PCS × PT100
Ambient Temperature	-60℃ up to +50℃	Installation Site	Indoor / Outdoor
Certification	ISO9001, CCC, CE, EAC	Origin	China
Transport Package	Standard Seaworthy Packing	HS Code	8501530090
Production Capacity	80,000	Casing Protection	Closed Type

2. Product Overview

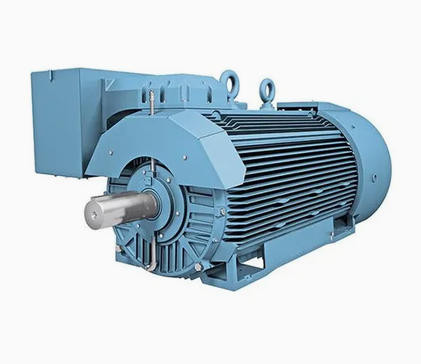

The YSJ series compact high-voltage motors feature a rugged cast iron frame with an advanced rib-cooled design. As totally enclosed fan-cooled (TEFC) motors, they are engineered to deliver robust performance in demanding industrial environments. The series covers an output range of up to 2,250 kW and is available in shaft heights up to 560mm. Capable of operating at both 50Hz and 60Hz, these motors offer synchronous speeds ranging from 500 to 3600 rpm, making them highly versatile for various industrial applications.

3. Mounting Arrangements

The YSJ series supports flexible installation to accommodate diverse spatial requirements:

IM B3 / IM 1001: Standard horizontal floor mounting with feet facing downwards.
IM V1 / IM 3011: Vertical solid shaft mounting with the flange and free shaft end facing downwards.

4. Enclosure and Cooling Systems

The YSJ series offers multiple cooling and protection configurations to adapt to specific environmental conditions:

IC411 / IP55 (Standard): Features an external shaft-mounted fan utilizing surrounding air for cooling. Provides reliable protection against dust ingress and water jets from any direction.
IC416 / IP55: Equipped with an independent motor-driven cooling fan. This ensures consistent cooling even during low-speed operations, making it ideal for applications powered by Variable Frequency Drives (VFD).
IP66 Protection (Optional): Offers complete dust-tight enclosure and protection against powerful water jets (12.5mm nozzle) from any direction, suitable for harsh or washdown environments.

Cooling Principle (IC411): Utilizes a self-circulating closed-circuit coolant system. Heat is transferred through the external ribbed surface of the motor to the surrounding medium. The coolant circulation is driven directly by the main motor's rotational speed via an integrated fan.

5. Packaging and Transportation

Standard Export Packaging: Plywood cases or fumigation-treated wooden packages.
Transportation: Fully suitable for long-distance transportation via sea or land, ensuring the motor arrives safely and securely.

6. Warranty Policy

Standard Warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.
Extended Warranty: Extended warranty periods are available upon request. Please contact us for further details and customized agreements.
