Product Highlights
-
High Efficiency & Energy Saving: Advanced design ensures high efficiency, low noise, low vibration, and reliable continuous operation.
-
Customizable Voltage & Power: Rated power up to 20,000 kW; Voltage options range from 3 kV to 13.8 kV; Frequency 50Hz/60Hz.
-
Robust Insulation & Cooling: Features F-class insulation with VPI (Vacuum Pressure Impregnation) process; Closed air-to-air cooling system for easy maintenance and superior moisture resistance.
-
Premium Components: Squirrel-cage rotor with copper bars; High-quality SKF bearings; Carbon steel welded frame offering a balance of light weight and high rigidity.
-
Certified Quality: Fully compliant with ISO9001, CCC, CE, GB755-2000, and IEC standards; Subjected to rigorous pre-shipment testing.
-
Flexible Speed Control: Supports frequency conversion speed control with a range of 5-50 Hz for precise industrial adjustments.
-
Trusted Manufacturer: Backed by over 70 years of experience; Annual production capacity of 8,000 MW; A leading manufacturer in China.
Product Attributes
Product Description

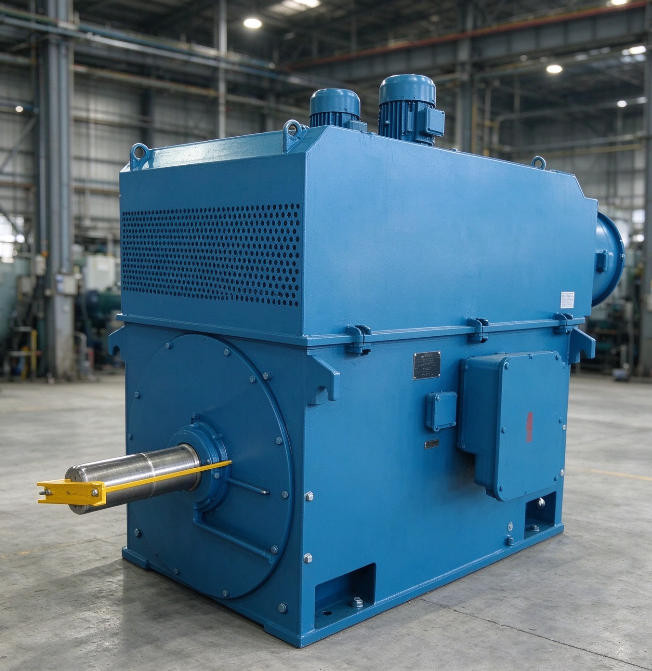

The YPKK Series High-Voltage Three-Phase Asynchronous Motors (Frame Size H355-1120) feature a rational structure and advanced manufacturing technology. They offer distinct advantages including high efficiency, energy savings, low noise, low vibration, and reliable operation, making them easy to install and maintain.
Standards & Compliance
The motor's power ratings, mounting dimensions, and electrical performance comply with the national standard GB755-2000 ("Rotating Electrical Machines - Rating and Performance") and relevant IEC standards, as well as the industry standard JB/T10314.2-2002.
Operating Environment
Designed for environments where the altitude does not exceed 1,000m above sea level and the ambient air temperature does not exceed 40°C, free from serious dust, corrosive, or explosive gases. Customized versions for hot, humid zones, and plateau areas are available upon request.
Structural Features
-
Frame: Adopts a box-type structure welded from steel plates, ensuring light weight and excellent rigidity.
-
Cooling: A closed air-to-air cooler is mounted on top of the motor, designed for easy dismantling and installation to facilitate maintenance.
-
Stator: Uses an external pressure mounting structure. The stator windings are made of F-class insulating materials with reliable fixing and tying.
-
Insulation Process: The windings undergo multiple turn-to-turn impulse voltage tests and voltage withstand tests. They are treated using advanced German Vacuum Pressure Impregnation (VPI) solvent-free paint equipment, ensuring excellent insulation properties, high mechanical strength, and strong moisture resistance.
-
Rotor: The squirrel-cage rotor utilizes a copper bar structure manufactured via advanced welding technology. It undergoes dynamic balancing verification to ensure smooth and reliable operation.
Bearings & Control
Depending on the power and speed, the motor is equipped with either rolling bearings or sliding bearings. It supports frequency conversion speed control with a range of 5-50 Hz. While the standard rated voltage is 6kV/10kV, we can customize voltage, frequency, and protection levels to meet specific requirements.
Certifications
-
ISO9001
-
CCC
-
CE
-
IEC Standards
-
GB755-2000
Packaging & Shipping
-
Packaging: Standard seaworthy export packaging.
-
Options: Plywood cases or wooden fumigation packages available.
-
Transport: Suitable for long-distance transportation by sea.
Our Advantages
-
Wide Power Range: Extensive options available to suit various needs.
-
Excellent Starting Performance: Optimized for reliable startups.
-
Global Supply: Available to all industry segments and applications worldwide.
-
High Reliability: Designed to minimize operation costs and downtime.
-
High Flexibility: Customizable designs to meet specific project requirements.
-
FAT Support: We support witnessing Factory Acceptance Tests (FAT) either on-site or online.
Quality Control
We implement strict in-process inspection and quality control. All measuring apparatus and instruments are calibrated annually.
Inspection Breakdown by Part:
Testing
Every motor undergoes rigorous testing before leaving the factory. A qualified test report is generated for each unit prior to shipment.
Routine Test Items:
-
Winding three-phase DC resistance
-
Winding insulation resistance to ground
-
Winding withstand voltage test
-
No-load current, power, and loss
-
Three-phase no-load current imbalance
-
Locked rotor current and torque
-
Maximum torque
-
Rotation direction
-
Vibration (horizontal, vertical, axial)
-
Noise level
Type Test Items:
-
Full load input power, current, and power factor
-
Stator and rotor winding losses
-
Iron loss and mechanical loss
-
Other losses
-
Full-load slip ratio
-
Stator winding temperature rise
-
Bearing temperature
-
Thermal winding insulation resistance
-
Overload test
-
Efficiency
After-Sales Service
-
Standard Warranty: 12 months after commissioning or 18 months after delivery, whichever comes first.
-
Extended Warranty: Available upon request. Please contact us for details.
