Product Highlights
-
High Efficiency & Energy Saving: Optimized electromagnetic design delivers high efficiency, low noise, low vibration and stable long-term operation.
-
Wide Customizable Power Range: Rated power can be customized up to 20,000kW to suit different industrial driving requirements.
-
Flexible Voltage Options: Available in 3kV, 3.3kV, 6kV, 6.6kV, 10kV, 11kV and 13.8kV, with 50Hz or 60Hz supply.
-
Robust Box-Type Frame: Steel plate welded frame provides light weight and strong rigidity, with a closed air-to-air cooler mounted on top for easy removal and maintenance.
-
Reliable Insulation System: F-class insulation with VPI vacuum pressure impregnation process improves moisture resistance, dielectric strength and mechanical stability.
-
Smooth Rotor Operation: Copper bar squirrel cage rotor welded by mature technology and verified by dynamic balancing for reliable running.
-
Strict Quality Control: ISO9001, CCC and CE certified, with in-process inspection and full factory testing before shipment.
-
Experienced Manufacturer: Over 70 years of motor manufacturing experience and an annual production capacity of 8,000MW.
Product Attributes
Product Description

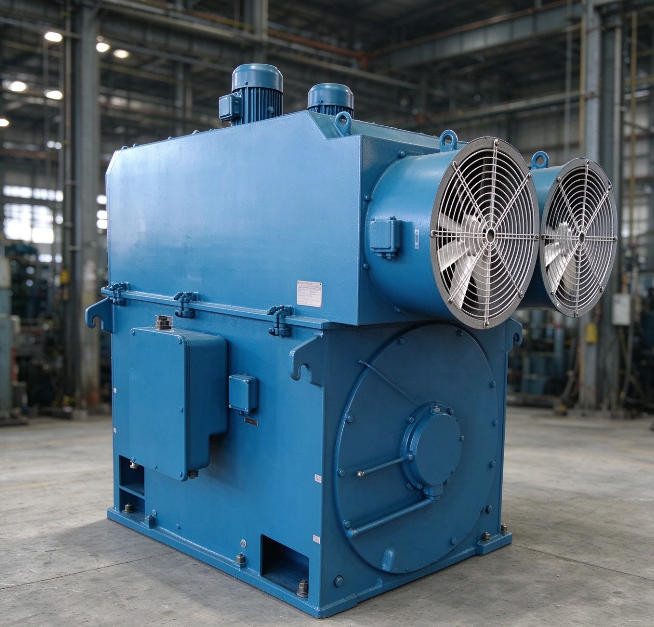

The YPKK series high voltage three phase asynchronous motor, with frame size H355 to H1120, features a reasonable structure and advanced manufacturing technology. It offers high efficiency, energy saving, low noise, low vibration, reliable operation and convenient installation and maintenance.
The motor power, mounting dimensions and electrical performance comply with the national standard GB755-2000 "Rotating Electrical Machines Rating and Performance", relevant IEC standards and the industry standard JB/T10314.2-2002.
The motor is suitable for environments at an altitude of no more than 1000m, with ambient air temperature no higher than 40°C, and without serious dust, corrosive or explosive gases. Motors for hot and humid zones, plateau areas and other special working conditions can also be produced according to customer requirements.
The motor adopts a box-type structure. The frame is welded from steel plate, giving light weight and good rigidity. A closed air-to-air cooler is installed on the top of the motor, which is easy to dismantle and install, making maintenance more convenient. The stator uses an external pressure mounting structure. The stator windings are made with F-class insulating materials, and the winding ends are reliably fixed and bound. During manufacturing, the windings pass turn-to-turn impulse voltage tests and ground withstand voltage tests, and are treated with advanced vacuum pressure impregnation solvent-free paint VPI process. This provides excellent insulation performance, good mechanical strength and strong moisture resistance.
The squirrel cage rotor adopts a copper bar structure and is manufactured by reliable welding technology. It is verified by dynamic balancing, helping ensure smooth and stable operation. Rolling bearings or sliding bearings can be selected according to motor power and speed.
The motor can be used with frequency conversion speed control, with a speed control range of approximately 5 to 50Hz. Standard rated voltage is 6kV or 10kV, and protection level can be IP44, IP54 or IP55. Other voltage, frequency, protection level, cooling method and mounting requirements can be customized.
Packaging & Shipping
Standard seaworthy export packaging is used for long distance transportation. Plywood cases or fumigated wooden cases are available according to destination country requirements. Professional packing helps protect the motor, cooler and accessories during sea freight.
Our Advantages
-
Wide power and voltage range for different industrial projects
-
Good starting performance and stable operation
-
Suitable for various industries and global supply requirements
-
High reliability to help reduce downtime and operating costs
-
Flexible customization for voltage, frequency, protection, cooling and mounting
-
Support for factory acceptance test FAT on site or online
Quality Control
All measuring instruments are calibrated regularly. Each production stage is inspected to ensure consistent quality.
Testing
Each motor is tested before leaving the factory. Only qualified motors can be shipped, and each motor is supplied with a test report.
Routine test items
Winding three-phase DC resistance, winding insulation resistance to ground, winding withstand voltage test, no-load current, no-load power, no-load loss, three-phase no-load current imbalance, locked rotor current, locked rotor torque, maximum torque, rotation direction, vibration in horizontal, vertical and axial directions, noise.
Type test items
Full load input power, full load current, stator winding loss, rotor winding loss, iron loss, mechanical loss, other losses, full-load slip ratio, stator winding temperature rise, bearing temperature, thermal winding insulation resistance, overload test, full-load power factor, efficiency.
After Sales Service
Standard warranty is 12 months after commissioning or 18 months after delivery, whichever comes first. Extended warranty can be discussed according to project requirements. Technical support, installation guidance and spare parts supply are available.
