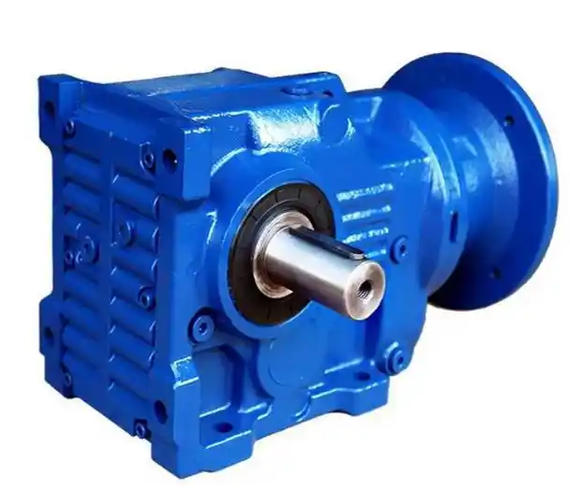

Can you provide detailed lubrication parameters for K47-29.32-1.5KW

1. Selection of lubricating oil

Normal working conditions: Under normal working conditions (0-40 ℃), it is recommended to use 460 # medium load industrial gear oil.

Special working conditions: For special applications (such as those requiring long service life, food industry, etc.), special lubricants must be used, such as long-life lubricants, food grade lubricants, or biodegradable lubricants.

Bearing lubrication: Wear resistant bearings require the use of specialized lubricating grease for lubrication.

2. Lubricating oil filling amount

The installation position determines the oil injection amount: The specified oil injection amount is a reference value, and the precise oil injection amount will vary with the number of stages, speed ratio, and installation position (M1~M6, etc.) of the reducer. When ordering or adjusting the installation position, the oil injection amount must be adjusted accordingly.

Accurate verification: Due to the significant differences in the oil injection amount corresponding to different installation positions, the most effective method for oil injection is to directly check the oil level plug, as it can indicate the most accurate oil injection amount.

3. Oil change cycle and maintenance

Mineral oil: It is usually necessary to replace the lubricating oil after 16000 hours of operation.

Synthetic oil: If synthetic oil is used, the oil change cycle can be extended to 28000 hours of operation before replacement.

4. Precautions related to lubrication

Ventilation and heat dissipation: Before starting up, be sure to loosen or replace the ventilation cap to ensure good ventilation, ventilation, and heat dissipation conditions for the gearbox.

Temperature monitoring during operation: After starting up, pay attention to observing the temperature rise. After running under load for two hours, the temperature rise of the oil tank should not exceed 45 ℃, and the maximum temperature of the oil tank should not exceed 85 ℃.

Initial operation: The efficiency of the gearbox during the initial operation is usually slightly lower than that during normal operation, which is more obvious in bevel gear reducers and is a normal phenomenon.
