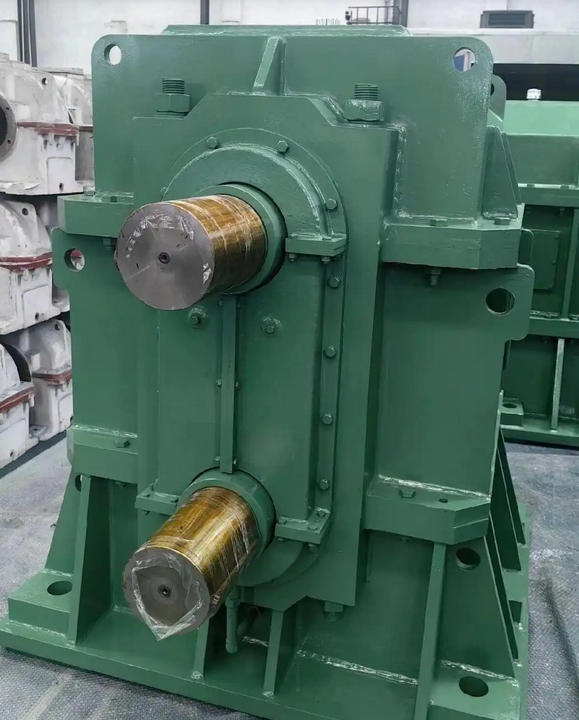

How to rectify debugging errors caused by short-term heating of the newly installed gearbox

The heating phenomenon of newly installed reducers in a short period of time is usually caused by improper assembly or parameter setting errors during the debugging stage. In response to this situation, it is recommended to conduct systematic investigation and rectification according to the following four key dimensions:

1. Check the status of the lubrication system

Poor lubrication is the core cause of increased friction and temperature rise. Firstly, it is necessary to check whether the oil level of the lubricating oil is at a reasonable height (usually at the centerline of the window). Excessive oil volume can cause power loss and exacerbate heating during oil agitation, while insufficient lubrication can lead to dry friction. Secondly, confirm whether the type and viscosity grade of the lubricating oil added meet the operating requirements of the gearbox. Incorrect type of oil can cause oil film rupture. If the oil is found to be turbid or mixed with impurities such as metal shavings, the old oil should be immediately drained and the oil circuit thoroughly cleaned before replacing it with qualified new oil.

2. Calibration installation and alignment accuracy

Assembly error is a common hidden danger that leads to abnormal heating of new equipment. It is necessary to use a dial gauge or laser centering instrument to recalibrate the coaxiality of the input/output shaft of the reducer with the motor and load equipment, ensuring that the radial deviation is controlled within 0.05mm and avoiding additional loads and vibrations caused by eccentric connections. At the same time, check whether the bearing preload is too large and whether the gear mesh clearance is appropriate. Tight assembly can cause serious internal friction and heat generation. In addition, it is necessary to confirm that the anchor bolts and other fasteners have been tightened in place in diagonal order to prevent abnormal stress caused by loose foundations.

3. Evaluate the load matching situation

Verify whether the current actual operating load exceeds the rated torque range of the gearbox. During the trial operation phase of a newly installed machine, the phenomenon of "little horse pulling big cart" may occur due to unstable process or small selection, causing the internal gears and bearings to operate under long-term overload and rapidly heat up. If severe overload is found, it is necessary to adjust the process flow in a timely manner to reduce the load, or replace the gearbox with a larger specification if necessary.

4. Improve external heat dissipation conditions

Check if the installation environment of the gearbox is poorly ventilated or sealed. Clean the dust, oil stains or debris attached to the surface of the shell and the heat sink to ensure that heat can be smoothly conducted and dissipated. If there are high-temperature heat sources around the equipment or if it is under continuous heavy load conditions, it is necessary to consider installing forced cooling measures such as cooling fans, heat sinks, or even water cooling devices to enhance the system's thermal balance capability.

Safety Tip:

During the troubleshooting process, please closely monitor the temperature of the gearbox casing. Generally speaking, when the bearing temperature reaches 70 ℃, a first level warning should be triggered and closely monitored; When the temperature rises to 80 ℃, the machine needs to be stopped for comprehensive testing; If the danger threshold exceeds 90 ℃, the power must be immediately cut off and the operation must be stopped. After cooling, it can be disassembled and repaired to prevent serious damage such as component sintering or locking.
