Navigating Conveyor Gear Reducers: Distinguishing R/F/K/S Series for Packaging Lines and 1.5KW Horizontal Mount Applications
R Series Helical Gear Reducers:
Characterized
by a streamlined architecture and high transmission efficiency,
R-series units deliver smooth, low-noise operation with exceptional
stability. As the most versatile option, they are ideally suited for
light to medium-duty conveyor systems, such as belt conveyors,
lightweight roller lines, and logistics sorting lines. They excel in
standard continuous-duty applications without severe shock loads,
offering an optimal balance of cost-effectiveness and low maintenance
requirements.

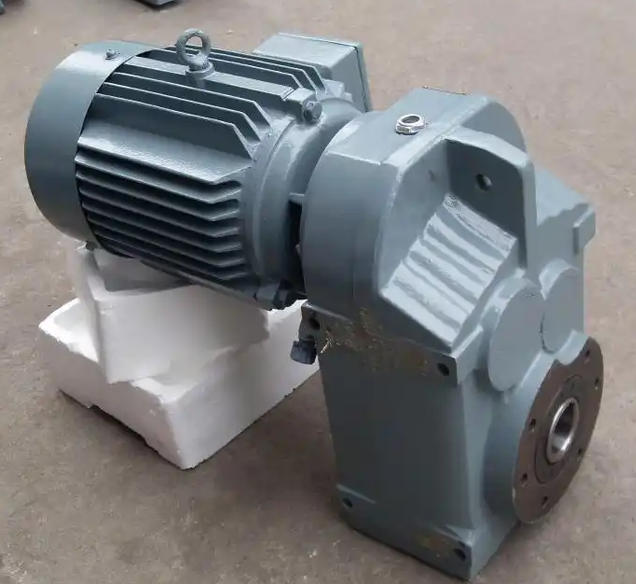

F Series Parallel Shaft Helical Gear Reducers:
Featuring
a parallel shaft configuration, F-series reducers provide superior
installation flexibility and enhanced torque capacity. Their robust
construction ensures excellent synchronous performance under heavy
loads. These units are the preferred choice for heavy-duty roller
conveyors, pallet handling lines, and long-distance belt conveyors,
particularly in scenarios demanding multi-drive synchronization and
stable, high-capacity material transport.
K Series Bevel-Helical Gear Reducers:
Utilizing
bevel gear technology to redirect power at a 90-degree angle, K-series
units are engineered for extreme durability and shock resistance. Their
rigid structure makes them perfect for demanding environments, including
mining and construction material handling, vertical elevators, and
steep-incline belt conveyors. They are specifically designed to
withstand high-impact forces, heavy loads, and complex spatial
installation constraints.
S Series Helical-Worm Gear Reducers:
S-series
reducers combine compact dimensions with a large reduction ratio and
smooth operation. A key advantage is their inherent self-locking
capability, which prevents reverse motion when powered down, making them
highly safe for inclined conveyors and small-scale elevators. While
they offer a budget-friendly solution for low-speed, light-duty
applications, their lower transmission efficiency makes them unsuitable
for continuous, heavy-duty 24/7 operations.
Summary:
For standard, general-purpose applications, the R Series is the go-to choice. For heavy loads requiring synchronous drive, opt for the F Series. In complex, high-impact, and heavy-duty environments, the K Series is unmatched. For light-duty, inclined applications where self-locking safety is paramount, the S Series is the most economical solution. Always align your selection with the specific demands of the operating environment.
