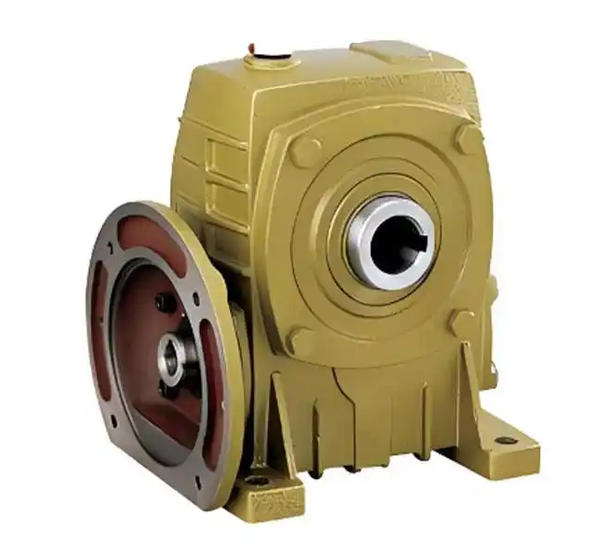

Common Misconceptions About WPDKA250-60-11KW Worm Gear Reducer Maintenance

Many operators run into pitfalls when servicing the WPDKA250-60-11KW worm gear reducer. Typical mistakes cover rushed disassembly, poor lubrication control, partial component replacement without root-cause analysis, incompatible spare part selection, and disregard for assembly specifications.

1. Hasty disassembly for inspection Once abnormal operation appears, some technicians immediately tear down the reducer. They skip preliminary non-invasive diagnostics including noise detection, temperature monitoring and oil condition inspection. This careless action can bring secondary damage and introduce foreign contaminants into the gear unit.
2. Failure to monitor lubricant health Most users only verify oil level, while overlooking oil degradation, emulsification and particle contamination. If lubricant stays in service beyond its service life, its lubricating properties will decline, which speeds up component wear and overheating.
3. Replacing only one mating gear instead of a matched set When damage happens to the worm or worm wheel, replacing just one component rather than both as a matched pair creates misalignment during meshing. The mismatch will trigger rapid wear again in a short operating period.
4. Fitting non-standard or low-grade spare components To cut expenses, some customers select aftermarket parts without factory certification. Substandard material and machining accuracy lower transmission efficiency and lead to premature reducer breakdown.
5. Assembly errors that create new failures Common assembly errors involve improperly set meshing backlash, large coaxial offset on input and output shafts, and seized hollow shafts due to omitted anti-seize coating. All these mistakes bring new faults after reassembly.
6. Neglecting the breather vent function A blocked or unopened breather cap traps pressure generated by thermal expansion inside the housing. The built-up internal pressure pushes lubricant past oil seals, causing leakage and insufficient lubrication for the transmission set.
