Comparison of Characteristics between Planetary Gear Reducer and Worm Gear Reducer
A reducer is an intermediate mechanism that connects the power source and the actuator, and has the function of matching speed and transmitting torque. There are many types of reducers, including harmonic reducers, RV reducers, planetary gear reducers, worm gear reducers, etc.

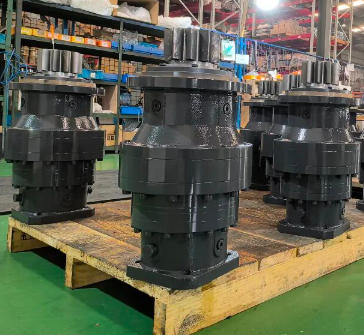

01 Planetary gear reducer
The four major characteristics of planetary gear reducers are high transmission efficiency and compact structure. The transmission efficiency of planetary gear reducers is usually above 90%, with low energy loss and high transmission efficiency; The planetary gear reducer adopts a planetary gear system, which has a relatively compact structure and is suitable for applications with limited space. b、 The planetary gear reducer has a wide transmission range and strong load-bearing capacity. By combining gears of different sizes, it can achieve a large transmission ratio. Due to the use of multiple gears working simultaneously, the planetary gear reducer has a high load-bearing capacity and can withstand large radial and axial loads. c、 Good stability, precise control of gear distribution in planetary gear reducers, balanced load distribution of various components, thus possessing good stability and smoothness. At present, planetary gear reducers mostly adopt low backlash designs, reducing backlash and improving transmission accuracy, ensuring transmission accuracy and stability during long-term operation. d、 Long service life and wide application. The uniform force distribution of gears and high-quality manufacturing process make planetary reducers have a long service life and also make them widely used.
02 Worm gear reducer
The four major characteristics of worm gear reducer are: a. Compact structure, which can achieve a large reduction ratio. Worm gear reducer only requires one worm wheel and one worm, and the structure is relatively compact. Worm gear reducers usually have a large reduction ratio, ranging from 10:1 to 100:1, or even higher, which can achieve high torque output and is suitable for situations that require high power output. b、 The unique self-locking worm gear reducer has strong self-locking properties and cannot rotate the worm gear by driving it in the opposite direction, which increases safety. This feature makes the worm gear reducer very useful in application scenarios where it is necessary to prevent the load from falling freely. The self-locking function also reduces the occurrence of accidents in the mechanical and industrial fields. c、 Wear resistant and durable, with a long service life. Nowadays, worm gear reducers are generally made of bronze or other wear-resistant materials, which have strong wear resistance and durability, suitable for long-term and high load working conditions, and also extend the service life of worm gear reducers. In addition, in worm gear reducers, the worm wheel generally adopts an involute tooth design, which ensures smoother meshing between the worm and the worm wheel, reduces impact and vibration, thereby improving transmission efficiency and service life. d、 Smooth operation and low noise. In the worm gear reducer, the meshing between the worm gear and the worm is very smooth, thereby reducing noise; In addition, modern worm gear reducers are generally processed using CNC machine tools, ensuring the basic dimensional accuracy and tooth profile accuracy of the worm and worm gear, and significantly reducing vibration and noise during operation.
