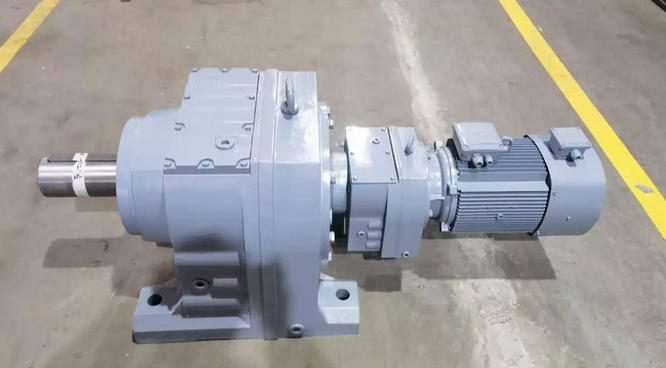

How to extend the service life of R87-Y5.5KW-4P-15-M1 gear reducer in high temperature environment

The core methods for extending the service life of R87-Y5.5KW-4P-15-M1 gear reducer in high temperature environments are: optimizing lubrication, strengthening heat dissipation, upgrading sealing, and regular monitoring. For high-temperature working conditions (usually referring to ambient temperatures ≥ 40 ℃), systematic protection is required from five aspects: selection and adaptation, lubrication management, heat dissipation protection, sealing upgrade, and regular maintenance. This can significantly reduce the failure rate and extend the equipment operation cycle.

1、 Select high-temperature specialized lubricating oil and scientifically manage oil quality

Poor lubrication is the main cause of gearbox failures at high temperatures (accounting for about 60%), and it is necessary to start with oil selection and maintenance cycles:

Selection requirements: Use high-temperature resistant synthetic gear oil, such as PAO base oil or ester synthetic oil, with a drop point ≥ 180 ℃, oxidation stability ≥ 1000h, and recommended viscosity ISO VG 220/320 (suitable for working conditions above 60 ℃).

Replacement cycle: Under high temperature conditions, the oxidation rate of lubricating oil is 3-5 times that of normal temperature. It is recommended to shorten the regular 8000 hour replacement cycle to every 1000-1500 hours, and further shorten it to 800 hours in extreme high temperature (≥ 80 ℃) environments.

Oil quality monitoring: Check the oil color (black indicates warning) and transparency (turbidity needs to be replaced) every week; Use a portable acid value analyzer to test. If the acid value increases by more than 0.5mgKOH/g, replace it immediately.

2、 Strengthen the cooling system and control the operating temperature

Cleaning the heat dissipation structure: Regularly use compressed air to remove dust and oil stains from the gearbox housing and heat dissipation fins to avoid the formation of insulation layers that affect heat dissipation efficiency.

Install auxiliary cooling: When the ambient temperature continues to be ≥ 45 ℃, an axial flow fan or water-cooled jacket can be installed to control the oil temperature below 85 ℃.

Reasonable start stop and load control: avoid frequent start stop causing instantaneous heating; Control the load not to exceed 80% of the rated value to prevent overloading operation from exacerbating temperature rise.

3、 Upgrade seals and protective structures to resist high temperature aging

Ordinary rubber seals are prone to hardening and cracking at high temperatures, causing oil leakage and dust intrusion:

Replace high temperature resistant seals: Replace the nitrile rubber (NBR) oil seal with fluororubber (FKM) or silicone rubber (VMQ) material, which can withstand temperatures up to -20 ℃~200 ℃ and effectively prevent leakage.

Adopting the combination of "double lip oil seal+labyrinth seal": enhancing the reliability of the shaft end seal, applying high-temperature lubricating grease (drip point ≥ 200 ℃) to the lip to improve the sealing life.

Install dust cover and insulation layer: In environments with high dust and temperature, install a metal protective cover for the gearbox and reserve ventilation openings to install filters to block external pollution paths.
