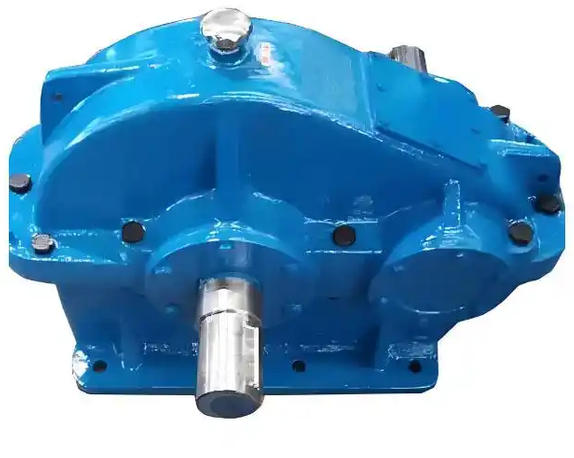

Will insufficient installation accuracy of ZD series soft tooth surface reducer lead to increased vibration

Specifically, the reasons and manifestations of vibration caused by insufficient installation accuracy are mainly reflected in the following aspects:

1. Poor alignment of the axis

If the concentricity (alignment accuracy) between the input shaft and motor shaft, output shaft and load shaft of the reducer exceeds the tolerance, excessive radial and axial forces will be generated during operation. This misalignment will disrupt the smooth operation of the shaft system and cause significant mechanical vibrations in the equipment.

2. Installation base and bolt fastening issues

If the installation base of the reducer is not flat enough, lacks rigidity, or the tightening torque of the fixed anchor bolts and flange bolts is uneven or loose, it will cause the support structure of the reducer to be unstable. This basic shaking and deformation will directly increase the vibration amplitude and frequency of the equipment during operation.

3. Internal assembly clearance deviation

For soft tooth surface reducers, if the gear mesh clearance or bearing clearance is not adjusted properly during assembly (such as clearance being too large or too small), it will disrupt the smooth meshing operation of the tooth surface, generate periodic impacts, and cause box resonance, leading to increased vibration.

Accompanying chain reaction:

In addition to increased vibration, insufficient installation accuracy is often accompanied by significant noise increase, abnormal bearing heating, reduced transmission efficiency, and accelerated wear of components such as gears and bearings. Therefore, when installing the ZD series reducer, it is necessary to use professional tools such as laser centering instruments and dial indicators to strictly control the installation accuracy, and tighten bolts according to specifications to ensure smooth operation of the equipment.
