Cycloid pinwheel vs planetary gear: How to choose between the two mainstream types of bending machine reducers?

The following is a detailed comparison and selection recommendation for the working conditions of the bending machine:

1. Core performance comparison

(1) Anti impact and overload capacity

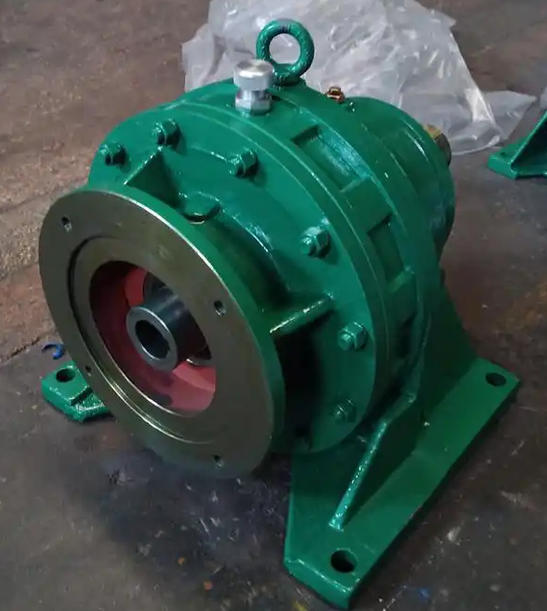

Cycloid pinwheel reducer: It has extremely strong impact and overload resistance, and can effectively buffer the transmission impact of equipment. It is very suitable for working conditions such as bending machines with high peak torque and obvious impact loads.

Planetary gear reducer: Although it also has a high load-bearing capacity, its performance is usually slightly inferior to that of cycloidal structure when facing extreme impacts.

(2) Transmission accuracy and rigidity

Planetary gear reducer: It has obvious advantages in precision and rigidity. Its return clearance (back clearance) can be controlled within a very small range (such as ≤ 5 arc minutes), with good torsional rigidity, which can ensure high repeatability positioning accuracy and motion stability during the bending process.

Cycloid pinwheel reducer: Although high-end RV cycloidal reducers can achieve extremely high precision, the accuracy of ordinary cycloidal pinwheel reducers is relatively low. Its advantage lies in high rigidity and small reverse backlash.

(3) Transmission efficiency and heat generation

Planetary gear reducer: The transmission efficiency is extremely high, usually reaching over 95%, with low heat generation, suitable for long-term continuous high-speed operation.

Cycloid pinwheel reducer: The single-stage transmission efficiency is also very high (90% -95%), but at extremely high speeds, due to certain sliding friction, the efficiency may be slightly lower than that of planetary gears.

(4) Cost and Structure

Planetary gear reducer: with multiple brand and specification options, wide cost range, relatively simple structure, and easy maintenance.

Cycloid pinwheel reducer: It requires extremely high manufacturing and assembly accuracy, so the cost is usually higher and the structure is more complex.

2. Selection guide for bending machine

According to the specific application scenarios of the bending machine, the following strategies can be followed:

(1) Priority selection of planetary gear reducers:

High precision CNC bending machine: When you have extremely high requirements for the bending angle and repeated positioning accuracy of the sheet metal, low backlash and high rigidity precision planetary reducers are the first choice.

High speed and continuous production: If your equipment needs to work continuously for a long time and has requirements for transmission efficiency and heat control, the high-efficiency advantage of planetary reducers will be even more obvious.

Comprehensive cost-effectiveness consideration: While meeting the requirements of accuracy and torque, we hope to obtain better costs and more extensive after-sales support.

(2) Priority selection of cycloidal pinwheel reducer:

Heavy load and strong impact conditions: When you need to bend very thick plates, or when there are frequent emergency stops, reversals, and huge impact loads in the working conditions, the excellent impact and overload resistance of the cycloidal reducer is the greatest guarantee.

The requirements for lifespan and reliability are extremely high: the multi tooth meshing and rolling friction characteristics of cycloidal reducers result in low failure rates and long lifespan, making them suitable for critical equipment that does not require frequent maintenance.

Need for high speed ratio and limited space: A single-stage cycloidal reducer can achieve a large reduction ratio with a very compact structure.
