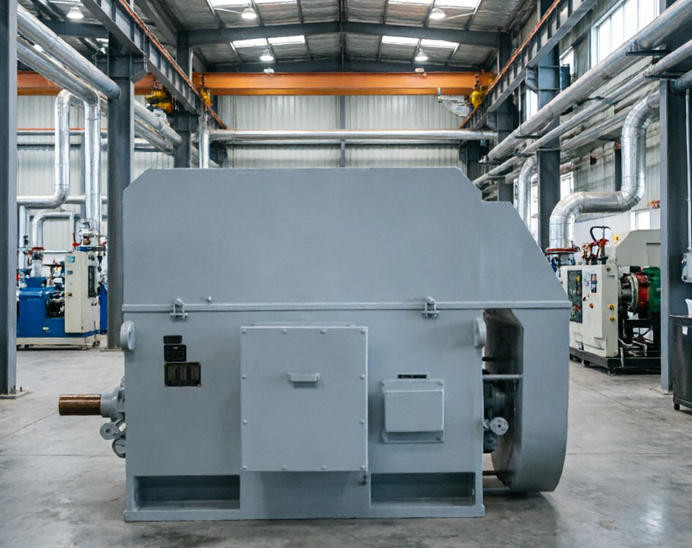

10000V 1250kW Ami Series Asynchronous Electric Motor for Pump Application

INQUIRY EMAIL

Basic Information

Item	Specification	Item	Specification
Model NO.	1250kW	Phase	Three‑Phase
Series	YKK / AMI Series	Rotor Type	Squirrel‑Cage
Enclosure Type	Closed Type	Number of Poles	2P‑12P
Starting Mode	Direct‑on‑line Starting (DOL)	Certifications	ISO9001, CCC, CE, EAC
Brand	Changli	Rated Power	1250 kW
Frequency	50 Hz, 60 Hz	Rated Voltage	3 kV, 6 kV, 10 kV
Frame Size	355 mm‑1120 mm	Cooling Method	IC611
Mounting Arrangement	IM B3 / IM 1001	Rotation Direction	CW / CCW
Duty Type	S1	Insulation Class	F
Temperature Rise Class	B	Ambient Temperature	‑20℃ ~ +50℃
Installation Site	Indoor / Outdoor	Protection Degree	IP55
Space Heater	Equipped	Temperature Sensor	Equipped
Export Packaging	Standard Seaworthy Packing	Material	Carbon Steel
Trademark	Changli	Place of Origin	China
HS Code	8501530090	Production Capacity	8000 sets/year

Product Description

1. Product Overview‑Modular AMI Induction Motors

The AMI engineered modular induction motors deliver high reliability and availability for the most demanding working conditions.

Custom‑built to satisfy individual customer and application requirements, this motor is developed on a proven modular industry platform. It fulfills diverse demanding operating requirements and supports highly‑specific configuration adaptation.

AMI modular induction motors conform to relevant international standards. Units are available for both direct‑on‑line (DOL) and variable‑speed drive (VSD) operation.

Adopting welded steel frame construction, AMI motors offer standard cooling & protection combinations: IC01 / IP24W, IC611 / IP55, IC81W / IP55. Standard shaft height ranges from 400 mm to 630 mm. Both horizontal and vertical mounting modes are supported.

Note: The catalogue technical data of AMI motors is shown at 50 Hz only; however the motors can run at both 50 Hz and 60 Hz, with synchronous speed ranging from 500 rpm to 3600 rpm. Catalogue‑covered output power reaches up to 8,000 kW, while the full product range extends to 23,000 kW.

2. Mounting Arrangements

Standard mounting configurations for AMI motors; other mounting forms are available upon request.

IM B3 (IM 1001): Horizontal foot‑mounted
IM V1 (IM 4011): Vertical flange‑mounted (free shaft end facing downwards)

3. Enclosure & Cooling Options

IC01 / IP24W Weather‑protected design with shaft‑mounted internal cooling fan. The air‑inlet path is designed with multi‑angle sharp turns and limited inlet air velocity below 3 m/s to trap heavy particles. Prevents ingress of rain, snow and airborne particles into electrical components, and provides protection against splashing water from all directions.
IC611 / IP55 Totally‑enclosed structure fitted with air‑to‑air heat exchanger. Shaft‑driven fans are installed inside and outside the housing for internal and external cooling circuits respectively. Dust‑proof and resistant to splashing water from any direction.
IC81W / IP55 Totally‑enclosed motor equipped with air‑to‑water heat exchanger. Internal shaft‑mounted fan serves the inner cooling circuit. Provides full‑range dust and splash‑water protection.
IC31 / IP55 Comes with cooling‑air inlet and outlet pipes for remote cooling air supply. Based on AMI motor frame without top cover. Dust‑proof and splash‑water resistant.
IC01 Version with asymmetric internal air circulation.

4. Packaging

Standard: Standard seaworthy export package
Optional: Plywood package or fumigated wooden package
Suitable for long‑distance sea and land transportation.

5. Warranty

Standard warranty term: 12 months after commissioning or 18 months after delivery, whichever occurs first. Extended warranty service is available; please contact us for further information.
