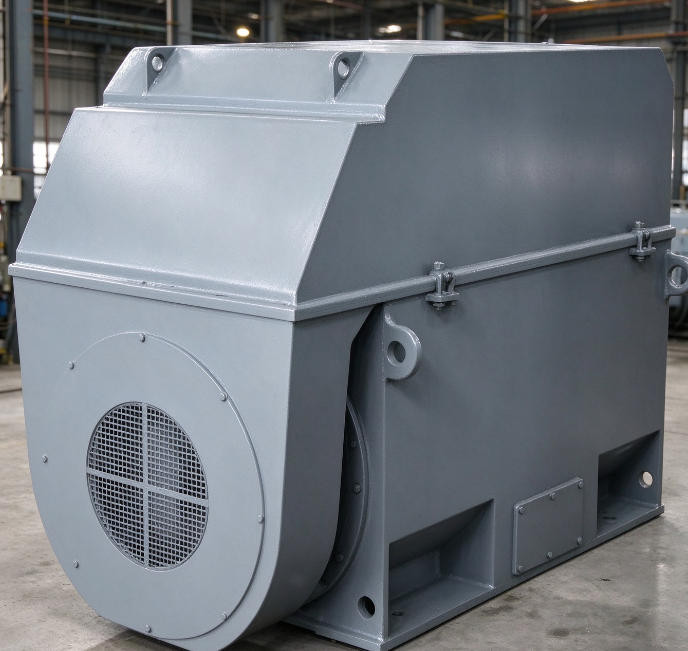

Ami Series 2000kw 6000V High Voltage Asynchronous Electric Motor

INQUIRY EMAIL

Basic Information

Item	Parameter	Item	Parameter
Model Series	AMI (YKK Series)	Rotor Type	Squirrel‑Cage
Rated Power	2000kW	Rated Voltage	3kV / 6kV / 10kV
Phase	Three‑Phase	Frequency	50Hz, 60Hz
Number of Poles	2p‑12p	Frame Size	355mm‑1120mm
Protection Grade	IP55	Enclosure Type	Closed Type
Cooling Method	IC611	Duty Type	S1
Insulation Class	F	Temperature Rise	B
Mounting Arrangement	IM B3 / IM1001	Rotation Direction	CW / CCW
Starting Mode	Direct‑on‑line Starting(DOL)	Ambient Temperature	-20℃ ~ 50℃
Installation Site	Indoor / Outdoor	Space Heater	Yes
Temperature Sensor	Yes	Certifications	ISO9001, CCC, CE, EAC
Brand	Changli	Origin	China
HS Code	8501530090	Production Capacity	8000 sets

Product Description

AMI series are engineered modular induction motors, delivering high reliability and availability for heavy‑duty and demanding industrial applications.

Customizable modular design adapts to diverse customer‑specific application requirements, built on mature industry modular platform. The motors comply with relevant international standards, supporting both direct‑on‑line (DOL) and variable speed drive (VSD) operation.

Adopting welded steel frame, multiple cooling & protection options are available as standard: IC01 / IP24W, IC611 / IP55, IC81W / IP55. Standard shaft height ranges from 400 mm to 630 mm, supporting horizontal or vertical mounting configurations.

This catalogue mainly shows 50 Hz technical data; the motor can run at 50 Hz & 60 Hz with synchronous speed 500‑3600 rpm. Catalogue coverage output power up to 8000 kW, full product range reaches 23000 kW.

Mounting Arrangements

IM B3 (IM1001): Horizontal foot‑mounted
IM V1 (IM4011): Vertical flange‑mounted (free shaft end facing downwards) Other mounting forms are available upon request.

Enclosure & Cooling Options

IC01 / IP24W Weather‑protected construction with shaft‑driven internal cooling fan. Optimized air intake path restricts particle and rain/snow ingress, resistant to splashing water from all directions.
IC611 / IP55 Fully‑enclosed structure equipped with air‑to‑air heat exchanger. Internal and external shaft‑mounted fans serve inner and outer cooling circuits. Dust‑proof and protected against splashing water from all directions.
IC81W / IP55 Fully‑enclosed motor fitted with air‑to‑water heat exchanger. Internal shaft fan for inner cooling circuit. Dust‑proof and splash‑water resistant.
IC31 / IP55 Reserved inlet & outlet pipes for remote cooling air; without top cover. Dust‑proof and splash‑water resistant.
IC01 Version with asymmetric internal air circulation.

Packaging

Export‑grade standard seaworthy packing, plywood or fumigated wooden package. Suitable for long‑distance sea and land transportation.

Warranty

Standard warranty: 12 months after commissioning or 18 months after delivery, whichever occurs first. Extended warranty service is available, please contact us for details.
