YJS Series 10000V 1000kW Rib Cooled Three Phase Induction Motor

INQUIRY EMAIL

product Attributes

Item	English	Value	Remarks
Customization	Customization	Available	Customizable
Application	Application	Industrial	For industrial use
Operating Speed	Operating Speed	Constant Speed	Constant‑speed operation
Model NO.	Model NO.	YJS	HXR 560 Series
Number of Stator	Number of Stator	Three‑Phase	Three‑phase motor
Species	Species	Hxr 560 Series	HXR 560 series
Rotor Structure	Rotor Structure	Squirrel‑Cage	Squirrel‑cage rotor
Casing Protection	Casing Protection	Closed Type	Totally‑enclosed frame
Number of Poles	Number of Poles	2p‑12p	2 to 12 poles
Starting Mode	Starting Mode	Direct on‑line Starting	DOL starting
Certification	Certification	ISO9001, CCC	ISO9001 & CCC approved
Rated Power	Rated Power	up to 2250kw	Max. 2250 kW
Frequency	Frequency	50Hz, 60Hz	50 / 60 Hz compatible
Voltage	Voltage	10000V	10 kV rated voltage
Frame Size	Frame Size	355mm to 560mm	Shaft height: 355‑560 mm
Cooling Method	Cooling Method	IC411	IC416 optional
Mounting Arrangement	Mounting Arrangement	Imb3/Imv1	IM B3 / IM V1
Rotation Direction	Rotation Direction	Cw/Ccw	Clockwise / Counter‑clockwise
Duty Type	Duty Type	S1	S1 continuous duty
Insulation Class	Insulation Class	F	Class F insulation
Temperature Rise	Temperature Rise	B	Class B temperature rise
Ambient Temperature	Ambient Temperature	-60 up to 50	‑60℃ ~ +50℃
Installation Site	Installation Site	Indoor/Outdoor	Indoor & outdoor applicable
Protection	Protection	IP55	IP66 optional
Space Heater	Space Heater	Yes	Fitted with space heater
Temperature Sensor	Temperature Sensor	Yes	Fitted with temperature sensor
Transport Package	Transport Package	Standard Seaworthy Packing	Export seaworthy packing
Origin	Origin	China	Made in China
HS Code	HS Code	8501530090	Customs HS code
Production Capacity	Production Capacity	80000	Annual output 80 000 units

Product Description

1. Product Description

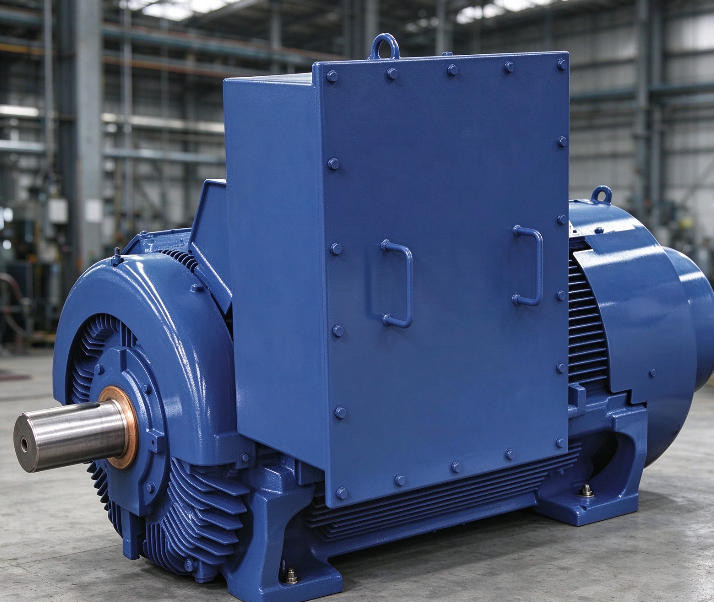

Rib cooled high voltage induction motors

High‑voltage induction motors feature a robust cast‑iron frame. They are totally‑enclosed fan‑cooled motors with IC411 cooling system and IP55 protection as standard. IC416 cooling and IP66 protection are available as options.

HXR motors deliver power output up to 2,250 kW with shaft height of 560 mm. Both horizontal and vertical mounting are supported.

This catalogue only shows technical data of HXR motors under 50 Hz condition. Nevertheless, the motors can run at both 50 Hz and 60 Hz, with synchronous speed ranging from 500 rpm to 3600 rpm.

2. Mounting arrangements

Standard mounting arrangements for HXR motors

IM B3 (Code II: IM 1001) Standard floor mounting with feet downward (horizontal foot‑mounted type).
IM V1 (Code II: IM 3011) Flange‑mounted type with free shaft end pointing downwards (vertical solid‑shaft flange mounting).

10000V Electric Motor, Yjs Series Rib Cooled, 1000kw

3. Enclosure and cooling

Standard combination: IC411 / IP55

HXR motors adopt an external shaft‑driven fan to dissipate heat by ambient air. The motors are resistant to dust and water jets.

IC416 / IP55 (Optional) HXR motors can be supplied with IC416 cooling. A separate motor drives the cooling fan to meet heat dissipation requirements for low‑speed applications, especially for motors operated via variable‑speed drives.

Protection Ratings

IP55 Dust protection: Limited dust ingress permitted, but not enough to impair motor operation. Water jet protection: Water jets from any direction will not cause harmful damage.
IP66 (Optional) Dust protection: The enclosure is completely dust‑tight. Water jet protection: Powerful water jets (12.5 mm nozzle) from any direction will not cause damage.

Cooling Method IC411 Principle

Frame surface cooling: Primary coolant circulates inside the motor in a closed loop. Heat is transferred through motor outer surfaces (together with stator core and other thermally‑conductive components) to ambient cooling medium. The surface can be plain or ribbed; an outer shell may be equipped to improve heat dissipation.
Self‑circulation: Coolant flow depends on main motor speed, driven by rotor, rotor‑mounted components, or fan/pump mechanically coupled to the main motor.

10000V Electric Motor, Yjs Series Rib Cooled, 1000kw

4. Transport Package

Standard seaworthy export package: plywood case or fumigated wooden case, suitable for long‑distance sea and land transportation.

5. Warranty Period

Standard warranty: 12 months after commissioning or 18 months after delivery, whichever comes first. Extended warranty service is available. Please contact us for further information.
