How to avoid iron filings and dust from mixing into the gearbox body of a milling machine

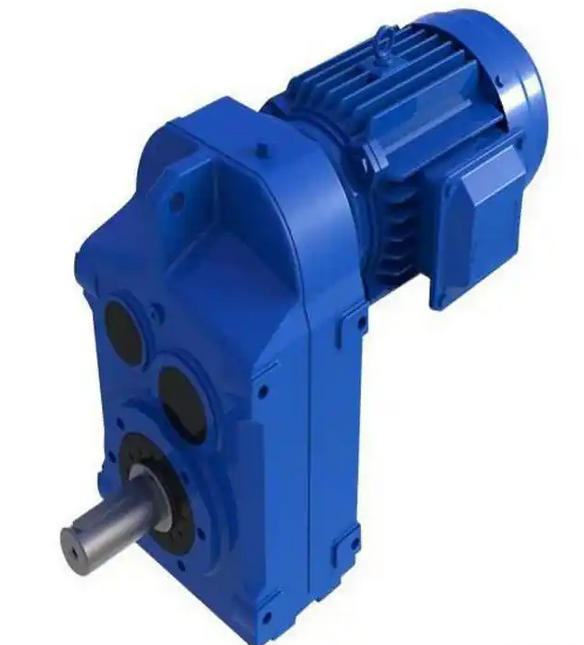

The core idea to prevent iron filings and cutting dust from entering the gearbox body of a milling machine is to combine "source protection+active cleaning+regular maintenance". As the core transmission component of milling machines, the reducer will severely wear down gears and bearings once metal dust or iron filings enter.

The following are specific protective measures and suggestions:

1. Install physical protective cover (source isolation)

Physical isolation is the most direct and effective means to block most of the splashing chips and dust.

(1) Installation of organ cover: Install multi-layer flexible organ protective covers on the exterior of the gearbox body and surrounding transmission components such as rails and screws. This type of cover is usually made of PVC coated cloth or nylon, with waterproof and scratch resistant properties (protection level up to IP54/IP65), which can effectively block dust and coolant from entering the interior of the box.

(2) Customized enclosed cover: Customized stainless steel or surface treated enclosed metal cover for the gearbox body to reduce dead corners of dust adsorption and effectively isolate cutting fluid and iron chips splashing in the processing area.

2. Introduce an active vacuum and debris removal system (active cleaning)

Actively absorb the generated debris during the processing to prevent it from settling and accumulating.

(1) Install a vacuum cleaner: Install a vacuum arm and vacuum hood near the gearbox body or in the machining area of the machine tool. By using negative pressure, suspended dust and fine iron filings are sucked into a multi-stage filtration system (such as a cyclone separator+nanofiber filter cartridge) to prevent dust accumulation inside the chassis.

(2) Equipped with automatic chip conveyor: combined with chain plate, scraper or magnetic chip conveyor. Especially the magnetic chip conveyor can use a strong magnetic field to adsorb small ferromagnetic debris, separate it from the coolant or machine tool, and transport it to the chip collection box, greatly reducing the probability of iron chips mixing into the box.

(3) Maintain internal positive pressure (advanced): If conditions permit, a weak positive pressure ventilation can be maintained inside the gearbox box or control cabinet, continuously sending filtered clean air to prevent external contaminated air and dust from entering.
