What are the installation forms of ZL60-31.5-15KW reducer

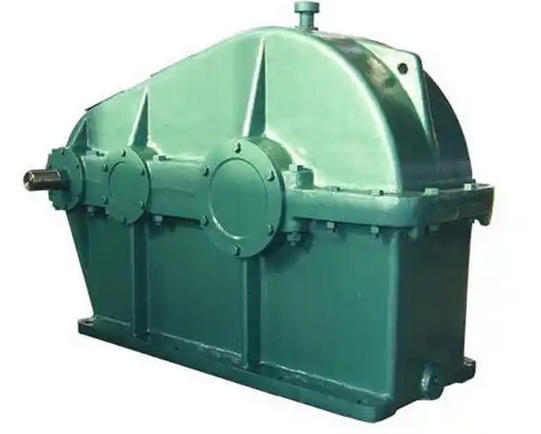

According to the model ZL60-31.5-15KW, this is a cylindrical gear reducer. This type of reducer usually has multiple installation forms, which can be divided into three dimensions: installation direction, connection method, and shaft layout.

1、 Divided by installation direction

1. Horizontal installation

Horizontal installation feature: This is the most common installation method, where the output shaft of the reducer is parallel to the ground.

Horizontal installation applicable scenarios: widely used in most horizontal transmission equipment such as conveyor belts, mixers, packaging machines, etc.

Advantages: Compact structure, easy installation, and easy access to key components during maintenance.

2. Vertical installation

Vertical installation feature: The output shaft of the reducer is perpendicular to the ground.

Vertical installation applicable scenarios: Suitable for vertical transmission with limited space, such as the top drive of elevators and mixing tanks.

Attention: Vertical installation requires higher sealing of lubricating oil and special attention should be paid to preventing oil leakage.

2、 Divided by connection method

1. Foundation installation

Installation characteristics of the foundation: It is fixed on the equipment base with bolts through the installation hole (foundation) at the bottom of the reducer.

Applicable scenarios for foot installation: This is the most common installation method for large or heavy-duty reducers (such as ZQ, ZL series), with strong stability.

Advantages of foot installation: Stable installation, suitable for equipment that requires horizontal fixation.

2. Flange installation

Flange installation features: The reducer end face is equipped with a flange plate, which is directly fixed to the vertical support surface of the equipment through bolts.

Applicable scenarios for flange installation: Suitable for equipment with ample radial space or vertical support surfaces.

Advantages of flange installation: compact axial size, good connection rigidity.
