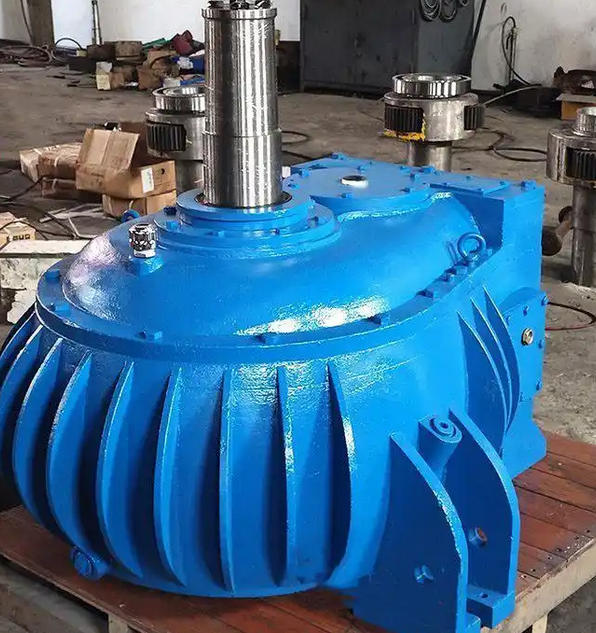

Installation taboos and common errors of LF60B cooling tower fan reducer

Regarding the installation of the LF60B cooling tower fan reducer, the following are key taboos and common errors that need to be avoided to ensure long-term stable operation of the equipment.

1、 Installation core taboos

1. Strictly prohibit hammering installation

When installing couplings, transmission components, or fastening bolts, it is absolutely forbidden to use tools such as hammers to directly strike them. Improper impact force can directly damage the bearings and gears inside the reducer, or cause deformation of the transmission shaft, disrupting the dynamic balance at the factory. Special tools should be used for assembly.

2. It is strictly prohibited to dismantle the counterweight block at will

The counterweights attached to the output shaft, transmission shaft, and impeller hub of the reducer are installed after strict dynamic balance testing before leaving the factory. Random disassembly can disrupt the dynamic balance of the entire transmission system, leading to severe vibrations during operation, equipment failure, and even accidents.

3. It is strictly prohibited to use unqualified lubricating oil

Lubricating oil of the specified grade must be selected, such as N110-N200 medium extreme pressure industrial gear oil (e.g. L-CKC 150/220). It is prohibited to use ordinary engine oil, as its wear resistance is insufficient and cannot effectively protect gears and bearings, which will accelerate wear and shorten equipment life.

2、 Common installation errors

1. Inaccurate coaxiality calibration

This is one of the most common mistakes. The coaxiality between the output shaft of the reducer, the input shaft of the motor, and the drive shaft of the fan must be accurately calibrated, and the error should be controlled within ≤ 0.1mm. Excessive coaxiality deviation can generate additional axial and radial forces, leading to premature wear of bearings and gears, and even causing shaft breakage.

2. Improper use of foundation pads

Excessive quantity: The number of gaskets should be minimized, and the correct approach is to control it within 3 pieces, with a maximum of 5 pieces. Excessive shims will reduce the stiffness and stability of the foundation support.

Size mismatch: The gasket area should match the contact area of the motor foot. A gasket that is too small can lead to insufficient support strength, affecting the alignment accuracy.

Poor material and condition: Flat and burr free gaskets should be used, and stainless steel material is recommended. Careful inspection and cleaning should be carried out before each installation.
