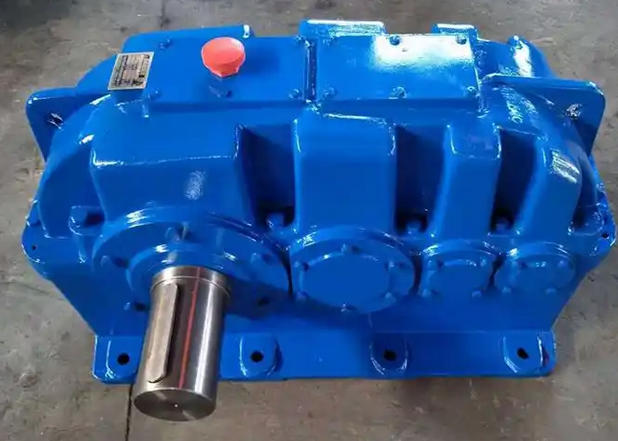

What are the special requirements for vertical installation lubrication of ZSY280-80-1 gear reducer

When installing the ZSY280-80-1 gear reducer vertically, special attention should be paid to oil level monitoring, lubricant selection, and sealing protection to ensure that the upper gears and bearings are fully lubricated and avoid insufficient lubrication or overheating damage caused by oil bias.

When installed vertically, gravity significantly affects the distribution and circulation of lubricating oil, which is the most crucial challenge.

1. Oil level adjustment: Vertical installation usually requires more lubricating oil than horizontal installation to ensure that all gears and bearings are fully lubricated. Low oil level can lead to insufficient lubrication and accelerated wear; If the oil level is too high, it may cause excessive stirring, leading to an increase in oil temperature and oil leakage. Therefore, it is necessary to strictly follow the equipment manual or the manufacturer's specialized guidance to determine the correct oil level for vertical installation.

2. Bearing lubrication: For vertically installed reducers, lubrication of the upper bearings is a challenge. It is usually necessary to set up a supplementary oil tank higher than the upper bearing position to ensure that the bearing can be effectively lubricated through immersion or oil circulation.

3. Oil selection: When installing vertically or obliquely, higher viscosity gear oil (such as using 460 instead of 220) can be considered to reduce lubricant loss and splash loss caused by gravity. Be sure to use the same brand of oil recommended by the manufacturer, and different brands of oil should not be mixed.

4. Forced lubrication: In extreme working conditions or situations with extremely high reliability requirements, it is possible to consider installing a forced lubrication pump to actively deliver lubricating oil to key gear meshing areas and bearing positions, ensuring foolproof lubrication.
