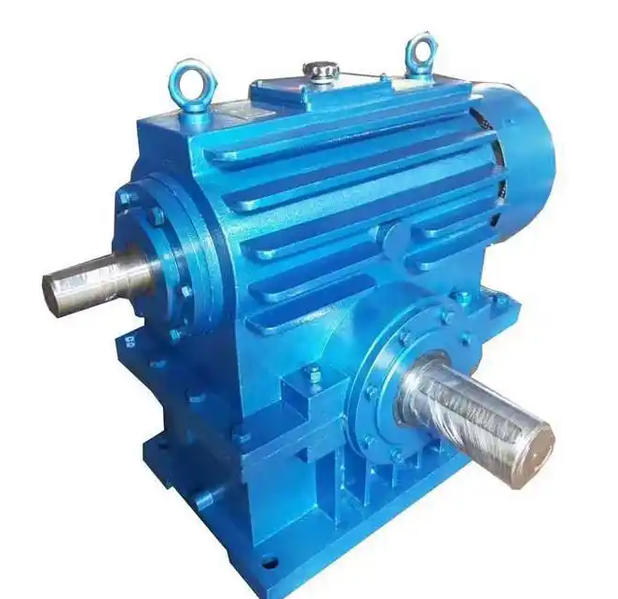

Which Details and Common Errors Are Easily Ignored During Lubrication & Sealing of WHS180‑50‑1 Worm Gear Reducer?
Proper
lubrication and sealing are critical to the longevity of the
WHS180-50-1 worm gear reducer. However, several subtle operational
errors are frequently overlooked during maintenance, often leading to
chain failures such as oil leakage, overheating, and accelerated wear.
Below are the key details that demand strict attention:
1. Neglecting the First Oil Change
After
the initial startup or after replacing the worm gear, the first
lubricating oil must be replaced within 7 to 14 days. This step is often
skipped, but it is crucial for removing residual metal shavings
generated during the break-in period. Failing to do so will
significantly accelerate component wear.
2. Inaccurate Oil Level Control
The oil level must be strictly maintained between 1/2 and 2/3 of the viewing window.
-
Too High: Increases oil agitation losses, leading to excessive temperature rise and a higher risk of leakage.
-
Too Low: Results in insufficient lubrication, causing dry grinding on the tooth surfaces.
3. Contamination During Refueling
Cleanliness
is paramount during refueling, inspection, or oil changes. Introducing
moisture, dust, or metal shavings into the tank degrades oil performance
and exacerbates mechanical wear. Always ensure a clean environment when
handling the lubricant.
4. Blocked Ventilation Plugs
As
the gearbox operates, internal pressure naturally increases. If the
ventilation plug becomes clogged with oil sludge or dust, the pressure
cannot escape, which can deform sealing rings and cause oil leakage.
Regular inspection and cleaning of the vent are essential.
5. Incorrect Lubricant Selection
Always
use specialized worm gear oil as specified in the manual. Misusing
ordinary engine oil or general-purpose grease can lead to insufficient
extreme pressure protection and wear resistance, easily causing tooth
surface adhesion or pitting corrosion.
6. Overlooking Temperature Rise Monitoring
Continuous
operation requires vigilant temperature monitoring. If the oil
temperature exceeds 85℃ or the temperature rise exceeds 60℃, the machine
must be stopped immediately for troubleshooting. Prolonged high
temperatures accelerate oil aging and compromise sealing performance.
Version 2: Concise Maintenance Checklist (Best for Quick Reference or Posters)
Critical Lubrication & Sealing Checks for WHS180‑50‑1 Reducers
Avoid these common oversights to prevent overheating, leakage, and premature failure:
-
First Oil Change: Mandatory replacement within 7–14 days of initial operation to clear break-in metal shavings.
-
Oil Level: Maintain strictly at 1/2 to 2/3 of the sight glass. Overfilling causes heat/leaks; underfilling causes dry grinding.
-
Cleanliness: Prevent moisture, dust, or debris entry during any oil service to protect oil integrity.
-
Vent Plug: Keep clear of sludge/dust to prevent internal pressure buildup and seal deformation.
-
Oil Type: Use only specified worm gear oil. Avoid generic engine oils or greases to prevent pitting and adhesion.
-
Temperature Limits: Stop immediately if oil temp > 85℃ or temp rise > 60℃ to prevent oil aging and seal failure.
