Will motor rotation error cause the XWD7-87-5.5 cycloidal pinwheel reducer to be scrapped

Yes, if the motor steering error is not corrected in a timely manner, it is highly likely to cause serious damage or even scrapping of the XWD7-87-5.5 cycloidal pinwheel reducer. Although its transmission efficiency theory is not affected by steering, incorrect steering can cause a chain reaction of lubrication failure, abnormal component wear, seal leakage, and excessive temperature rise, ultimately leading to irreversible damage.

1、 Why does incorrect steering lead to scrap risk?

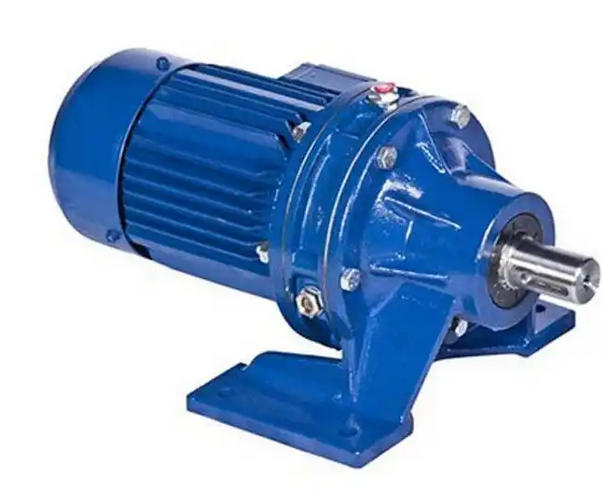

XWD7-87-5.5 is a medium power cycloidal pinwheel reducer (5.5kW, transmission ratio 87), and its internal structure, lubrication path, and sealing design are all based on specified steering optimization. Reverse operation will break the system balance:

1. Lubrication system disorder

The lubricating oil circuit is designed to adapt to the direction of splashing in forward rotation, and the oil cannot effectively cover the cycloidal gear teeth and needle teeth after reverse rotation;

Insufficient lubrication of bearings and mating surfaces leads to a significant increase in frictional resistance, and local temperatures can rise by 20-30 ℃;

High temperature accelerates the oxidation and deterioration of lubricating oil, generating sludge that blocks the oil passage, forming a vicious cycle of "oil shortage → temperature rise → wear".

2. The rapid failure of the seal causes oil leakage and pollution

The direction of the output shaft oil seal lip matches the specified direction, but reversing causes the lip to not fit the shaft surface;

Leakage may occur within 100 hours of operation, and the loss of lubricating oil will exacerbate internal dry wear;

External dust and moisture can invade the body, causing bearing rust and stuck needle teeth.

3. Abnormal stress on core components, resulting in a sudden decrease in lifespan

The meshing surface between the cycloid gear and the needle teeth is designed for one-way bearing, while reversing causes the non bearing surface to bear high stress;

Local contact stress exceeds the design value by 1.2-1.8 times, resulting in pitting, peeling, and even tooth surface cracking in the short term;

Actual test data shows that similar 5.5kW models experience cracks after running for 100-200 hours under incorrect steering, reducing their lifespan to below 30% of normal.

4. Damage to auxiliary structures, triggering cascading failures

If the model is equipped with a backstop, reverse rotation will cause it to be forcibly stressed, stuck or damaged;

The anchor bolts may loosen due to reverse vibration, and the displacement of the machine base may cause deformation of the transmission shaft and fracture of the coupling.
