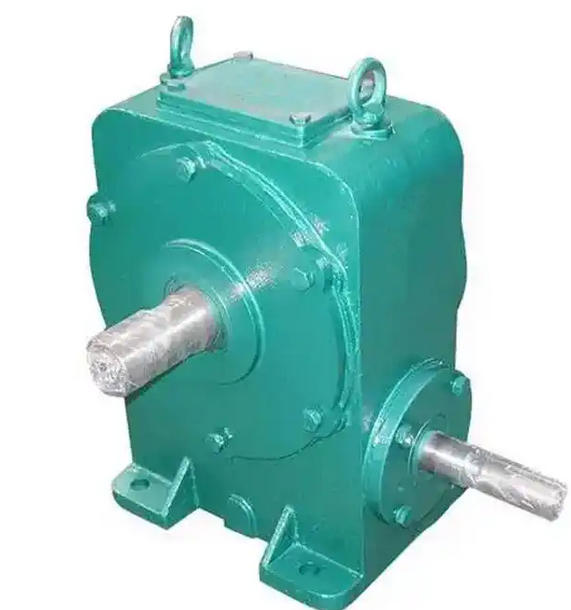

Common troubleshooting and solutions for WD180-47-3 worm gear reducer

The common faults of WD180-47-3 worm gear reducer mainly focus on heating, oil leakage, worm gear wear, bearing damage, and abnormal lubrication, which need to be systematically investigated and graded based on the operating phenomena.

Based on the structural characteristics and working conditions of this model of reducer, the following are common types of faults and their troubleshooting and solutions:

1. Gearbox overheating and oil leakage

This is the most typical fault in sliding friction transmission.

(1) The main reasons for the heating and oil leakage of the reducer are:

Sliding friction generates a large amount of heat, causing the oil temperature to rise and the lubricating oil to become thinner.

Thermal expansion and contraction increase the gap between the sealing surfaces, leading to an increase in internal pressure and causing oil leakage.

The breathable cap is blocked or not opened, causing an imbalance in pressure difference between the inside and outside of the box, forcing lubricating oil to overflow from the oil seal.

(2) Troubleshooting and solution for overheating and oil leakage of gearbox:

Check if the oil level is too high or too low, ensuring it is within the range of 1/2 to 2/3 of the oil mirror.

Confirm whether the viscosity of the lubricating oil matches the working conditions, and recommend using high viscosity extreme pressure gear oil such as L-CKD 320.

Check and clean the breathable cap to ensure it is unobstructed and unobstructed, and maintain it regularly if necessary.

Avoid vertical installation. If vertical installation is necessary, increase the amount of lubricating oil and strengthen heat dissipation management.

2. Increased wear of worm gear and worm gear

The worm gear acts continuously on the worm wheel like a file, and long-term operation is prone to wear and tear.

(1) Typical phenomenon of intensified wear of worm gear and worm:

Increased transmission noise, significant vibration, and decreased efficiency.

In severe cases, pitting, bonding, and even tooth breakage may occur.

(2) Investigation and solution for increased wear of worm gear and worm:

Check for overloading or improper selection, and confirm that the actual load is within the rated range.

After disassembly, observe the condition of the tooth surface: slight wear can be repaired by polishing; If there is pitting, peeling or tooth breakage, it is necessary to replace the same model of component.

Optimize lubrication conditions, choose lubricating oil with good wear resistance, and keep it clean to prevent impurities from entering.

3. Bearing damage and oil emulsification

Even with good sealing, bearings may still rust due to condensation water.

(1) Common manifestations of bearing damage and oil emulsification:

There is sharp abnormal noise, intensified vibration, and abnormal temperature rise during operation.

During dismantling inspection, it was found that the lubricating oil was emulsified, the bearing raceway was peeling off, or the ball bearings were stuck.

(2) Troubleshooting and resolution steps:

Check if the lubricating oil has been mixed with water, and replace it immediately if it has been emulsified.

Analyze whether the temperature difference changes during the shutdown process lead to the accumulation of condensed water, and suggest installing a dry respirator.

When replacing bearings, priority should be given to using original parts to avoid insufficient fitting accuracy.
