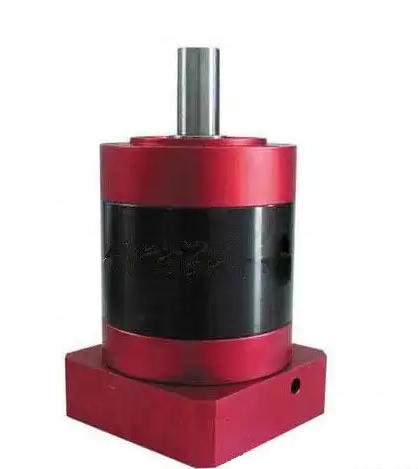

Application of precision planetary reducer in high-speed wire drawing machine

1. Coping with high-frequency impacts to ensure consistency in wire size

During the process of micro wire drawing, the wire undergoes large fluctuations in drawing force and strong instantaneous impact. The precision planetary reducer adopts a distributed load design with 3-6 sets of planetary gears synchronously meshing, which greatly improves the load-bearing capacity compared to traditional structures and can easily cope with high-frequency (such as>1000 times/hour) impact loads. At the same time, the high-strength alloy steel gears used have undergone rigorous heat treatment, possessing excellent torsional rigidity and minimal deformation under heavy load and impact conditions, effectively avoiding wire breakage or diameter fluctuations caused by elastic deformation of transmission components during the drawing process, ensuring uniform size and smooth surface of the finished wire material.

2. Extremely low backlash and high rigidity, achieving micrometer level precision control

The failure of equipment accuracy to meet standards is often closely related to the backlash of the transmission chain. The precision planetary reducer strictly controls the backlash at an extremely low level (such as ≤ 3 arc minutes or even ≤ 1 arc minute) through precision machining, ensuring zero backlash during reversing. Combined with its high rigidity structure, the equipment does not accumulate positioning errors during high-speed continuous operation, thereby ensuring extremely high precision in micro wire drawing.

3. Compact structure and smooth transmission optimize equipment operation status

The precision planetary gearbox has the characteristic of high torque density, which can output greater torque in a smaller volume and perfectly adapt to the compact installation space of wire drawing machines. In addition, by optimizing gear parameter design (such as increasing gear coincidence and using spiral tooth surface finishing technology), more teeth can simultaneously bear the load, greatly reducing the impact noise and vibration during the transmission process, enabling the wire drawing machine to operate more quietly and smoothly continuously.

4. Efficient heat dissipation and reliable protection, extending equipment maintenance cycle

High speed wire drawing machines typically require long-term, high load continuous operation. The precision planetary gearbox has extremely high transmission efficiency (single-stage transmission efficiency can reach over 97%), and generates very little heat on its own. Combined with optimized box heat dissipation design, high-quality synthetic lubricating grease, and high-grade (such as IP65) sealing protection, it can not only adapt to the common oil and dust environment in the wire drawing workshop, but also effectively delay the attenuation of lubricating oil, greatly reducing equipment failure rate and maintenance frequency.

In summary, the precision planetary reducer provides reliable power support for high-speed wire drawing machines through its high rigidity, low backlash, impact resistance, and high stability hard core transmission performance. It is the key to overcoming the problem of micro wire drawing accuracy and improving the quality of finished products.
