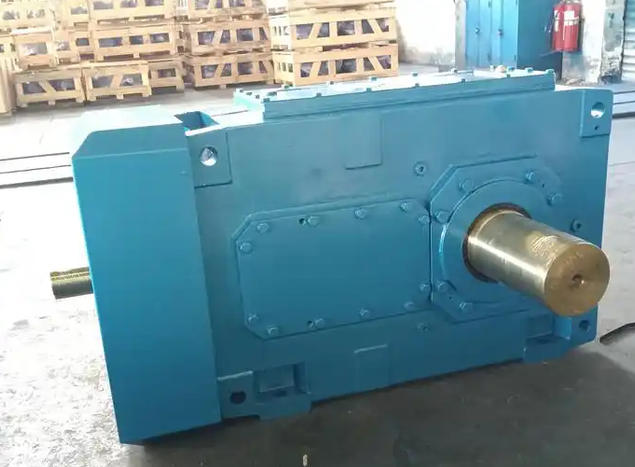

How to avoid irreversible damage to B3SH high-power gearbox

To avoid irreversible damage to the B3SH high-power gearbox, a systematic prevention and maintenance system needs to be established from multiple dimensions, including scientific selection, precise installation, intelligent operation and maintenance, and targeted protection. The following are specific coping strategies:

1、 Scientific selection and precise installation

Accurate torque and speed ratio calculation: Accurately calculate the starting, peak, and continuous working torque based on load characteristics, and reserve sufficient safety factors (such as mining machinery that needs to reserve more than 30%). When the speed ratio is greater than 40, it is recommended to use a two-stage transmission scheme of planetary gears and worm gears to avoid a significant decrease in efficiency.

High precision alignment calibration: A laser alignment instrument must be used during installation to ensure that the input/output shaft deviation is ≤ 0.05mm/m. Minor misalignment (such as 0.1mm) may also lead to a significant reduction in bearing life.

Stable foundation and sealing: Elastic pads are used to absorb vibrations. For high-power models, it is recommended to pour concrete foundation and perform secondary grouting. Before the first oil injection, it is necessary to rinse the pipeline with circulating oil to prevent residual casting sand from contaminating the lubricating oil.

2、 Intelligent operation and status monitoring

Multi dimensional oil analysis: Regular sampling and testing, if the moisture content is greater than 500ppm, it should be replaced immediately; Iron spectrum analysis found that wear particles larger than 15 μ m indicate bearing abnormalities; If the viscosity changes by more than 20% compared to ISO VG grade, the oil should be changed.

Vibration and temperature monitoring: Install acceleration sensors on the housing to monitor gear meshing frequency and abnormal bearing rotation frequency sidebands. Regularly use infrared thermography scanning. If the temperature difference between each bearing seat is greater than 8 ℃ or the oil temperature suddenly rises by 10 ℃, it may indicate uneven load or lubrication failure.

3、 Typical fault warning and intervention

Abnormal noise diagnosis: High frequency whistling usually points to gear backlash issues, intermittent impact sounds need to be checked for loose couplings, and low pitched roars are mostly due to excessive bearing clearance.

Active intervention for wear: During the mild wear stage, extreme pressure anti-wear agents can be added to repair micro damaged surfaces; During moderate wear, a magnetic filter is used to capture free debris; When issuing a severe wear warning, it is necessary to combine vibration analysis to determine the scope of unboxing inspection.

4、 Special protection in harsh environments

For the application of B3SH high-power gearbox in complex environments such as sandstorms, high humidity, and heavy loads, the following protective measures need to be strengthened:

Strengthen sealing and respiratory system: adopt a composite structure of labyrinth seal and rotating shaft seal, and use modified silicone sealant on the joint surface. Equipped with an intelligent respiratory protection system, it automatically starts heating when the environmental humidity exceeds 80%, preventing condensation inside the box and filtering out dust particles.

Optimize lubrication and heat dissipation: PAO based fully synthetic gear oil is preferred, which has significantly better anti emulsification and anti micro pitting ability than mineral oil. Combining the design of a large fan with a larger surface area of the casing enhances heat dissipation, ensuring long-term operation and maintaining appropriate temperature.

Dealing with extreme temperatures: In extremely cold environments, it is necessary to add pour point depressants to improve pour point or equip with oil heaters; In extremely hot environments, supplement viscosity index improver and cooperate with cooling system to prevent insufficient oil film thickness from causing direct metal contact.
