What factors are related to the installation accuracy of the reducer

The installation accuracy of the reducer is not determined by a single link, but runs through the entire process from manufacturing, assembly to final on-site installation. Specifically, it is closely related to the following core dimensions:

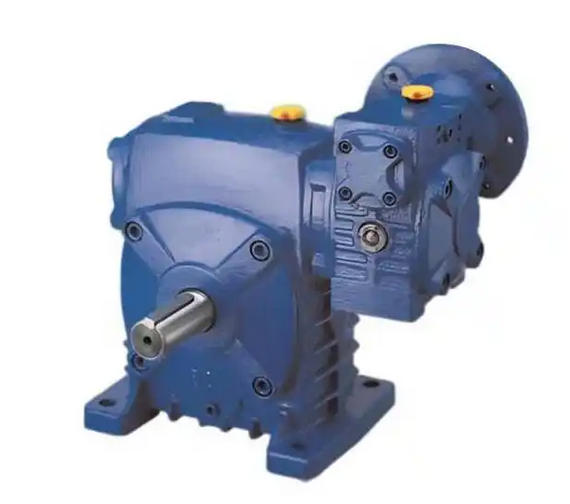

1. Manufacturing accuracy of the box and components

The gearbox body is the foundation for supporting and fixing the shaft system, and its manufacturing accuracy directly determines the operational accuracy of the entire machine.

Geometric tolerances: The coaxiality of the bearing holes on the housing, the parallelism between the axis of the bearing holes and the mating surface, as well as the center distance and perpendicularity between the worm gear bearing holes, are crucial tolerances. If these precision standards are not met, it can lead to abnormal bearing wear, poor gear meshing, decreased transmission efficiency, and even equipment locking.

Processing and assembly quality: The machining accuracy of gears (such as tooth profile error, surface roughness) and the adjustment of pre tightening force during assembly will directly affect the smoothness of transmission and the final accuracy performance.

2. Core operations for on-site installation and alignment

This is the most intuitive and problem prone link that affects installation accuracy.

Axis alignment accuracy: The concentricity (alignment) between the reducer, drive motor, and load equipment is the core of installation. Excessive radial and angular deviations can generate additional radial forces and vibrations, accelerating the wear of bearings and gears. It is usually required to calibrate using a dial gauge or laser centering instrument to control the deviation within a very small range (such as within 0.05mm).

The rigidity of the installation base: The installation foundation must have sufficient rigidity and flatness. If the rigidity of the base is insufficient or the flatness is poor, the structure will deform under load, thereby twisting the gearbox body and causing poor alignment of the internal bearings.

Bolt tightening process: Fixed bolts must use calibrated torque wrenches and be tightened strictly in stages according to the diagonal crossing sequence. Excessive tightening or uneven force can cause deformation of the shell and disrupt the normal meshing of internal gears.

Assembly method of output shaft: It is strictly prohibited to use tools such as hammers to directly strike the input/output shaft of the reducer and forcefully install couplings or gears. The correct approach is to use a thread puller, hydraulic tool, or hot installation method to avoid impact force damaging the internal bearing accuracy and gear meshing.

3. Operating environment and working conditions factors

The operational status after installation will also affect the maintenance of accuracy in reverse.

Lubrication status: Poor lubrication can exacerbate the wear of gears and bearings, leading to a gradual increase in backlash (backlash) and a decrease in transmission accuracy. Lubricating oil/grease of the specified model and quantity must be added strictly according to the requirements.

Temperature variation: The gearbox generates heat during operation, and the thermal expansion coefficient of different materials varies. The thermal expansion caused by temperature changes can alter the meshing state of gears, leading to drift in accuracy.

External load limitation: It is necessary to ensure that the radial and axial forces borne by the output shaft are within the allowable range. Excessive cantilever load can cause deformation of the shaft system, affecting accuracy and shortening lifespan.
