Product Highlights
-
High Power Range: Output up to 2,250 kW with shaft height 560.
-
Robust Construction: Rugged cast iron frame with totally enclosed fan cooling.
-
Flexible Mounting: Available for horizontal IM B3 or vertical IM V1 mounting.
-
Dual Frequency Support: Operates at 50 Hz and 60 Hz with speeds from 500 to 3,600 rpm.
-
Advanced Cooling Options: Standard IC411 cooling; optional IC416 for low speed applications.
-
Superior Protection: Standard IP55; optional IP66 for complete dust tightness.
-
Customizable Parameters: Voltage, frequency, frame size, and rotation direction can be customized.
-
Extended Warranty: Standard 12 to 18 months warranty with extension options available.
Product Attributes
Product Description
1. Product Overview

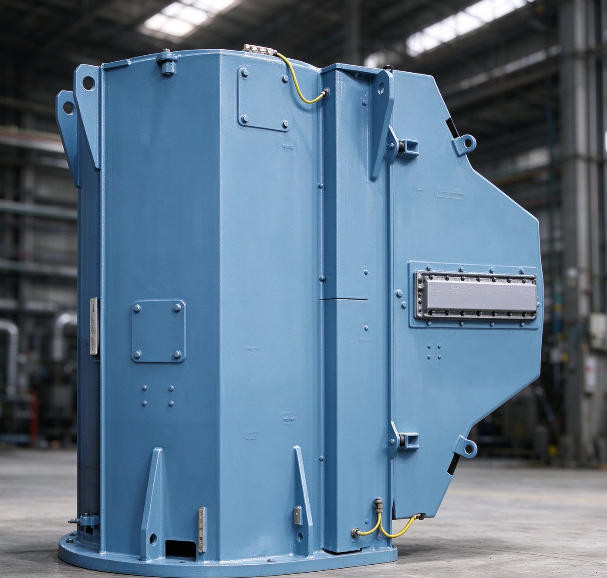

The HXR 560 series rib cooled motors are built with a rugged cast iron frame and adopt a totally enclosed fan cooled design. The standard configuration includes IC411 cooling and IP55 protection. IC416 cooling and IP66 protection are available as optional configurations.
The HXR motor series covers an output range up to 2,250 kW and is available with a shaft height of 560 mm. The motors can be mounted horizontally or vertically, making them suitable for a wide range of industrial applications.
Technical data in the standard catalog is shown at 50 Hz, but the motors are designed to operate at both 50 Hz and 60 Hz, with synchronous speeds ranging from 500 to 3,600 rpm.
2. Mounting Arrangements
Standard mounting arrangements include:
-
IM B3 / IM 1001: Standard floor mounting with feet facing downwards for horizontal foot mounted installation.
-
IM V1 / IM 3011: Flange mounting with the free shaft end facing downwards for vertical solid shaft applications.
3. Enclosure and Cooling
IC411 / IP55
HXR motors are equipped with an external shaft mounted fan that uses surrounding air for cooling. The motors are protected against dust ingress and water jets.
IC416 / IP55
HXR motors are also available with IC416 cooling. An additional motor drives the cooling fan to provide sufficient cooling for low speed applications, especially when the motor is supplied by a variable speed drive.
IP55 Protection
-
Provides protection against dust ingress that is not sufficient to affect motor operation.
-
Resists water jets projected from any direction without harmful effects.
IP66 Protection
-
Provides complete dust tight enclosure.
-
Resists powerful water jets from any direction without harmful effects.
IC411 Cooling Principle
-
The motor frame surface is cooled by circulating primary coolant in a closed circuit inside the motor. Heat is transferred through the external surface of the motor to the surrounding medium.
-
Coolant circulation is driven by the rotational speed of the main motor, either by the rotor itself or by a fan mounted directly on the rotor.
4. Packaging
Standard seaworthy packaging is provided for export, including plywood cases or wooden fumigation packages. The packaging is suitable for long distance transportation by sea or land.
5. Warranty
Standard warranty is 12 months after commissioning or 18 months after delivery, whichever occurs first. Extended warranty periods are available upon request.
