Product Highlights

High Power Range: Output up to 2,250 kW with 560 shaft height. Flexible Mounting: Horizontal IM B3 or vertical IM V1 installation options. Robust Cooling: IC411 as standard; optional IC416 for low-speed applications. Dust & Water Protection: IP55 standard, optional IP66 against dust and water jets. Dual Frequency Compatibility: Runs on 50 Hz and 60 Hz, synchronous speed 500–3600 rpm. Heavy-duty Construction: Totally enclosed fan cooled design with robust cast iron frame. Flexible Warranty: Standard 12–18 months warranty, extended warranty available. Certified Quality: ISO9001 and CCC certified for reliable industrial use.

Product Attributes

Product Description

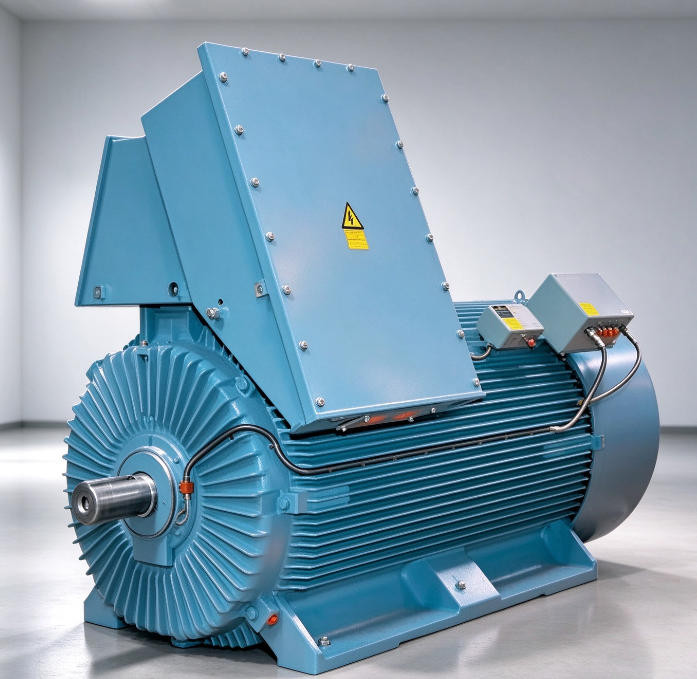

1. Product Overview: HXR 560 Rib Cooled Motors

The HXR 560 rib cooled motor features a heavy-duty cast iron frame. It is a totally enclosed fan cooled motor with IC411 cooling system and IP55 protection grade as standard. IC416 cooling and IP66 protection can be selected as optional configurations.

The HXR series motor reaches maximum output power of 2,250 kW at shaft height 560. It supports horizontal and vertical mounting layouts. This catalog lists technical data under 50 Hz condition only, while the motor can operate on both 50 Hz and 60 Hz power supply, with synchronous speed ranging from 500 to 3600 rpm.

2. Mounting arrangements

Standard mounting options for HXR motors Code I: IM B3 Code II: IM 1001 Standard floor mounting, feet downwards (horizontal foot-mounted).

Code I: IM V1 Code II: IM 3011 Flange mounted with free shaft end facing downwards (vertical solid shaft, flange mounting).

3. Enclosure and cooling

Standard configuration: IC411 / IP55 HXR motors adopt external shaft-mounted fan, utilizing ambient air for heat dissipation. The motor is protected against dust ingress and water jets. Its working principle is shown in diagram 27.

Optional configuration: IC416 / IP55 IC416 cooling version is available for HXR motors. An independent auxiliary motor drives the cooling fan to provide sufficient cooling capacity for low-speed working conditions, especially when the motor is controlled by variable speed drives.

IP55 Protection • Dust protection: Limited dust may enter the housing, but the accumulated dust will not affect normal motor operation. • Water jet protection: Water jets sprayed from any direction by nozzle will not cause damage to the motor.

IP66 Protection (optional) HXR motors can be equipped with IP66 high protection grade. • Dust protection: The enclosure is fully dust-tight. • Water jet protection: Powerful water jets (12.5 mm nozzle) hitting the housing from any direction have no harmful impact.

IC411 Cooling Principle • Frame surface cooling: Coolant circulates inside the motor in a closed loop. Heat transfers through stator core and conductive components to the motor outer surface, then dissipates to ambient air. The frame can be plain or ribbed, with or without outer shell to improve heat exchange efficiency. • Self-circulation: Coolant flow relies on main motor rotation. It is driven by rotor, rotor-mounted parts, or fan/pump assembly mechanically coupled to the main motor rotor.

4. Packaging

Export standard seaworthy packaging Plywood case or fumigated wooden case Suitable for long-distance sea and land transportation.

5. Warranty Period

Standard warranty: 12 months after commissioning or 18 months after delivery, whichever comes first. Extended warranty service is available upon request, please contact us for details.
