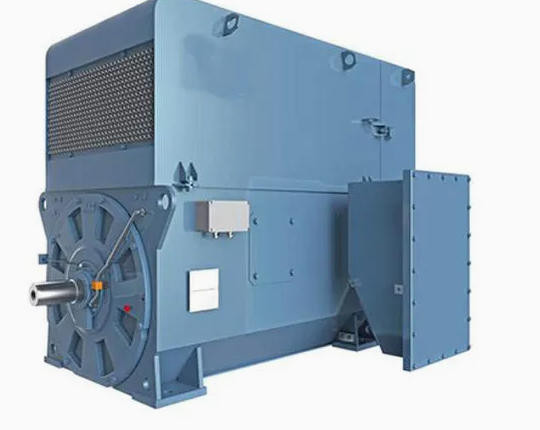

1250kW to 2300kW Three Phase Medium Voltage Electric Induction Motor 600rpm 3000V 50Hz AMI 560L10AB

INQUIRY EMAIL

Basic Information

Parameter	Specification	Parameter	Specification
Model NO.	AMI 560L10AB	Number of Stator	Three-Phase
Species	Ami Series	Rotor Structure	Squirrel-Cage
Casing Protection	Closed Type	Number of Poles	2-12p
Starting Mode	Direct on-line Starting	Certification	ISO9001, CCC
Brand	a B B	Rated Power	up to 8000kw
Frequency	50Hz, 60Hz	Voltage	3kv, 6kv, 10kv
Frame Size	400-630mm	Cooling Method	IC01/IC611/IC81W/IC31
Mounting Arrangement	Imb3/Imv1	Rotation Direction	Cw/Ccw
Duty Type	S1	Insulation Class	F
Temperature Rise	B	Ambient Temperature	-20 up to 50
Installation Site	Indoor/Outdoor	Protection	IP24/IP55
Space Heater	Yes	Temperature Sensor	Yes
Transport Package	Standard Seaworthy Packing	Origin	China
HS Code	8501530090	Production Capacity	8000

Product Description

Modular Induction Motors, Type AMI

AMI engineered modular induction motors are designed to provide high reliability and availability in the toughest and most demanding applications. Tailor-made to meet the specific needs of each customer, they are built on the motor industry's most successful modular platform, offering the flexibility to adapt to highly specific configurations while complying with all relevant international standards. These motors support both direct-on-line (DOL) and variable speed drive (VSD) operations.

Key features include:

Welded Steel Frame: Ensures robust construction.
Versatile Cooling & Protection: Standard options include IC01/IP24W, IC611/IP55, and IC81W/IP55.
Flexible Mounting: Available for horizontal or vertical installation.
Broad Range: Standard shaft heights range from 400 to 630 mm. While this catalog highlights 50 Hz data, motors operate at both 50 Hz and 60 Hz with synchronous speeds from 500 to 3600 rpm.
Power Output: Catalog covers up to 8,000 kW, with the complete range extending to 23,000 kW.

Mounting Arrangements

Standard mounting configurations are provided below, with other options available upon request:

IM B3 (Code II: IM 1001): Horizontal foot mounted.
IM V1 (Code II: IM 4011): Vertical flange mounted (free shaft end facing downwards).

Enclosure and Cooling Options

IC01 / IP24 (Weather Protected): Features a shaft-mounted cooling fan inside the housing. The design limits air intake velocity to an average of 3 m/s and incorporates three acute direction changes (>90 degrees) to reduce the ingress of rain, snow, and airborne particles. Protects against splashing water from any direction.
IC611 / IP55 (Air-to-Air Heat Exchanger): A fully enclosed design with an air-to-air heat exchanger. Shaft-mounted fans are fitted both inside and outside the casing to supply separate cooling circuits. Protects against dust and splashing water.
IC81W / IP55 (Air-to-Water Heat Exchanger): A fully enclosed motor utilizing an air-to-water heat exchanger. An internal shaft-mounted fan supplies the internal cooling circuit. Protects against dust and splashing water.
IC31 / IP55 (Remote Cooling Air): Fitted with inlet and outlet pipes for remote cooling air. Essentially the AMI motor frame without an upper cover. Protects against dust and splashing water.
IC01 (Asymmetric): Features asymmetric inside air circulation.

Packaging

All motors are shipped in standard seaworthy packages suitable for long-distance transportation by sea or land. Options include plywood packages or wooden fumigation packages for export.

Warranty Period

Standard Warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.
Extended Warranty: Available upon request. Please contact us for further details.
