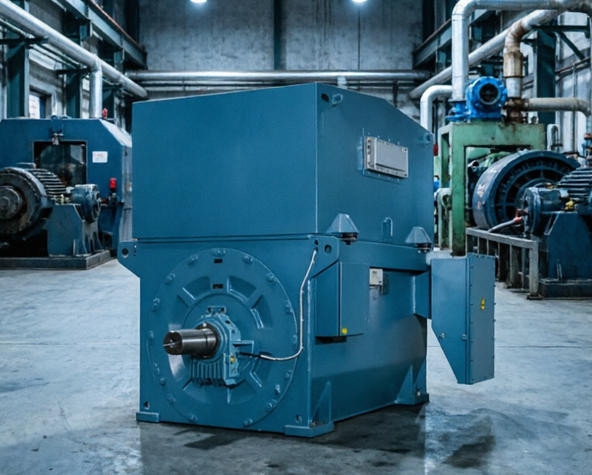

High Voltage AC Induction Motor 1250–1800kW 3000V 8-Pole IP24 IC01 Cooling AMI 500L8W Frame

INQUIRY EMAIL

Basic Info.

Item	Specification	Item	Specification
Model No.	AMI 500L8W	Number of Stator Phases	Three‑Phase
Series	AMI Series	Rotor Structure	Squirrel‑Cage
Casing Protection	Closed Type	Number of Poles	2p‑12p
Starting Mode	Direct‑on‑line Starting	Certification	ISO9001, CCC, CE
Rated Power	Up to 8000kW	Frequency	50Hz, 60Hz
Rated Voltage	3kV, 6kV, 10kV	Frame Size	400‑630mm
Cooling Method	IC01 / IC611 / IC81W / IC31	Mounting Arrangement	IMB3 / IMV1
Rotation Direction	CW / CCW	Duty Type	S1
Insulation Class	Class F	Temperature Rise	Class B
Ambient Temperature	-20℃ ~ 50℃	Installation Site	Indoor / Outdoor
Protection Degree	IP24 / IP55	Space Heater	Equipped
Temperature Sensor	Equipped	Transport Package	Standard Seaworthy Packing
Origin	China	HS Code	8501530090

Product Description

AMI engineered modular induction motors deliver high reliability and availability for the most rigorous and demanding operating conditions. Custom‑built to satisfy individual customer and application requirements, these motors are developed on the industry’s proven modular platform. They fulfill a wide range of challenging application needs and can be flexibly configured for highly specific working scenarios.

These modular induction motors conform to relevant international standards, supporting both direct‑on‑line (DOL) and variable speed drive (VSD) operation.

The AMI motor features a welded steel frame. Standard available cooling‑protection combinations include IC01 / IP24W, IC611 / IP55 and IC81W / IP55. Standard shaft heights range from 400 mm to 630 mm. The motors support both horizontal and vertical mounting.

This catalogue lists technical data at 50 Hz only, while the motors are capable of running at 50 Hz or 60 Hz, with synchronous speeds ranging from 500 rpm to 3600 rpm. The power scope covered by this catalogue reaches up to 8,000 kW; the full product portfolio extends to 23,000 kW.

Mounting Arrangements

Standard mounting versions for AMI motors; other mounting types are available upon request.

Code I: IM B3 / Code II: IM 1001 — Horizontal foot‑mounted
Code I: IM V1 / Code II: IM 4011 — Vertical flange‑mounted (free shaft end pointing downwards)

Enclosure and Cooling

IC01 / IP24 This weather‑protected motor is fitted with a shaft‑driven internal cooling fan inside the housing. Its structural design minimizes ingress of rain, snow and airborne particles into electrical components. Air intake velocity is controlled below 3 m/s to allow heavy particles to settle. The air passage adopts three sharp turns over 90° to further optimize airflow. The motor is resistant to splashing water from all directions.

IC611 / IP55 This fully‑enclosed motor is equipped with an air‑to‑air heat exchanger. Shaft‑driven fans are installed inside and outside the frame for internal and external cooling circuits respectively. It provides protection against dust and omnidirectional splashing water.

IC81W / IP55 This totally enclosed motor is fitted with an air‑to‑water heat exchanger. A shaft‑mounted internal fan drives the inner cooling circuit. It provides protection against dust and omnidirectional splashing water.

IC31 / IP55 This configuration comes with inlet and outlet pipes for remote cooling air supply, essentially an AMI motor frame without top cover. It provides protection against dust and omnidirectional splashing water.

IC01 features asymmetric internal air circulation.

Packaging

Standard export‑grade seaworthy packing: plywood case or fumigated wooden case, suitable for long‑distance sea and land transportation.

Warranty Period

Standard warranty: 12 months upon commissioning or 18 months after delivery, whichever occurs first. Extended warranty service is available; please contact us for further information.
