Product Highlights
-
Tailor-Made Customization: Motors are engineered to meet specific customer needs and application requirements.
-
Wide Power Range: Output powers up to 8,000 kW in catalog, with complete range reaching 23,000 kW.
-
Dual Frequency Operation: Operates at both 50 Hz and 60 Hz with synchronous speeds from 500 to 3600 rpm.
-
Versatile Mounting Options: Available for horizontal or vertical mounting with standard and custom arrangements.
-
Multiple Cooling Methods: Standard options include IC01, IC611, IC81W, and IC31 with corresponding protection types.
-
Robust Construction: Features a welded steel frame designed for high reliability in demanding applications.
-
Extended Warranty Option: Standard 12-18 months warranty with options to extend upon request.
-
International Compliance: Complies with ISO9001, CCC, and CE standards for global market access.
Product Attributes
|
Attribute
|
Specification
|
Attribute
|
Specification
|
|
Customization
|
Available
|
Application
|
Industrial
|
|
Operating Speed
|
Constant Speed
|
Model NO.
|
AMI450L10W
|
|
Number of Stator
|
Three-Phase
|
Species
|
Ami Series
|
|
Rotor Structure
|
Squirrel-Cage
|
Casing Protection
|
Closed Type
|
|
Number of Poles
|
2p-12p
|
Starting Mode
|
Direct on-line Starting
|
|
Certification
|
ISO9001, CCC, CE
|
Rated Power
|
Up to 8000 kW
|
|
Frequency
|
50Hz, 60Hz
|
Voltage
|
3kV, 6kV, 10kV
|
|
Frame Size
|
400-630mm
|
Cooling Method
|
IC01/IC611/IC81W/IC31
|
|
Mounting Arrangement
|
IMB3/IMV1
|
Rotation Direction
|
CW/CCW
|
|
Duty Type
|
S1
|
Insulation Class
|
F
|
|
Temperature Rise
|
B
|
Ambient Temperature
|
-20°C up to 50°C
|
|
Installation Site
|
Indoor/Outdoor
|
Protection
|
IP24/IP55
|
|
Space Heater
|
Yes
|
Temperature Sensor
|
Yes
|
|
Transport Package
|
Standard Seaworthy Packing
|
Origin
|
China
|
|
HS Code
|
8501530090
|
Production Capacity
|
8000
|
Product Description

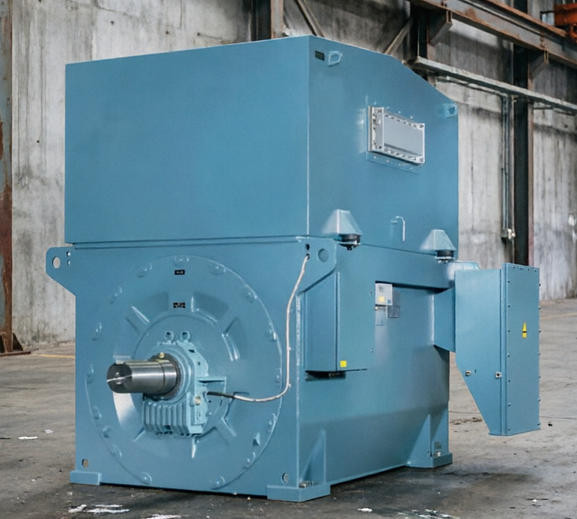

Modular Induction Motors, Type AMI
High Reliability and Availability
AMI
engineered modular induction motors provide reliability and
availability in the toughest and most demanding applications. Engineered
modular induction motors are tailor-made to meet the needs of each
customer and each application. Built from the motor industry's most
successful modular platform, they match a broad variety of demanding
application requirements while having the flexibility to be adapted to
highly specific configurations.
Modular
induction motors comply with all relevant international standards.
Versions are available for both direct-on-line (DOL) and variable speed
drive (VSD) operation.
AMI
modular induction motors have a welded steel frame. They are available
with the following cooling methods and protection types as standard:
IC01 / IP24W, IC611 / IP55, and IC81W / IP55. The standard shaft heights
are 400 to 630 mm. The motors can be mounted horizontally or
vertically.
For
AMI motors, this catalog shows the technical data at 50 Hz only, but
these motors operate at both 50 Hz and 60 Hz, with synchronous speeds
from 500 to 3600 rpm. Output powers for AMI motors covered in this
catalogue are up to 8,000 kW, while the complete range goes up to 23,000
kW.
Mounting Arrangements
Standard mounting arrangements for AMI motors:
-
IM B3 (Code II: IM 1001): Horizontal foot mounted
-
IM V1 (Code II: IM 4011): Vertical flange mounted (free shaft end facing downwards)
Other mountings are available on request.
Enclosure and Cooling
-
IC01 / IP24: This weather-protected motor has a shaft-mounted cooling fan inside the
housing. The design reduces the ingress of rain, snow, and airborne
particles into the electrical parts. On the air intake path, this is
achieved by ensuring that the average velocity does not exceed 3 m/s,
allowing heavier particles to settle. The design includes three acute
direction changes in excess of 90 degrees to further reduce the flow
rate to the optimal level. The motor is protected against splashing
water from any direction.
-
IC611 / IP55: This design has an air-to-air heat exchanger mounted on the motor,
which is fully enclosed. Shaft-mounted fans are fitted both inside and
outside of the casing to supply the inside and outside cooling circuits
respectively. The motor is protected against dust and splashing water
from any direction.
-
IC81W / IP55: This fully enclosed motor is fitted with an air-to-water heat
exchanger. A shaft-mounted fan is fitted inside the casing to supply the
internal cooling circuit. The motor is protected against dust and
splashing water from any direction.
-
IC31 / IP55: This version is fitted with inlet and outlet pipes to use remote
cooling air. Essentially, this is the AMI motor frame without an upper
cover. The motor is protected against dust and splashing water from any
direction.
Packaging
Standard
seaworthy package for export: Plywood package or wooden fumigation
package, suitable for long-distance transportation by sea or land.
Warranty Period
-
Standard Warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.
-
Extended Warranty: If you would like to extend the warranty period, it is allowed. Please contact us for more details.
