| Item | Specification | Item | Specification |
|---|---|---|---|
| Model NO. | AMI 500L10A | Number of Stator | Three‑Phase |
| Product Series | AMI Series | Rotor Structure | Squirrel‑Cage |
| Enclosure Type | Closed Type | Number of Poles | 2p‑12p |
| Starting Mode | Direct‑on‑Line (DOL) Starting | Certifications | ISO9001, CCC, CE |
| Rated Power | Up to 8000 kW | Frequency | 50 Hz, 60 Hz |
| Rated Voltage | 3 kV, 6 kV, 10 kV | Frame Size | 400‑630 mm |
| Cooling Method | IC01 / IC611 / IC81W / IC31 | Mounting Arrangement | IM B3 / IM V1 |
| Rotation Direction | CW / CCW | Duty Type | S1 |
| Insulation Class | Class F | Temperature Rise | Class B |
| Ambient Temperature | ‑20 ℃ ~ 50 ℃ | Installation Site | Indoor / Outdoor |
| Protection Degree | IP24 / IP55 | Space Heater | Yes |
| Temperature Sensor | Yes | Transport Package | Standard Seaworthy Packing |
| Origin | China | HS Code | 8501530090 |
| Production Capacity | 8000 Sets | — | — |

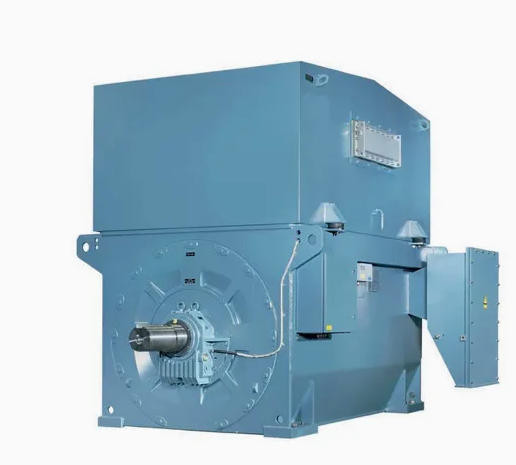

AMI series are engineered modular induction motors featuring high reliability and operational availability, designed for harsh and demanding working conditions.
Custom‑built to satisfy individual customer and application requirements, the AMI motor adopts a proven mature modular platform. It fulfills diverse demanding operating conditions and supports highly‑specialized customized configurations.
Complying with relevant international standards, AMI motors support both direct‑on‑line (DOL) startup and variable speed drive (VSD) operation.
The motor housing is constructed with welded steel structure. Standard combinations of cooling system and protection grade include IC01 / IP24W, IC611 / IP55 and IC81W / IP55, with standard shaft height ranging from 400 mm to 630 mm. Both horizontal and vertical mounting modes are available.
This catalogue lists technical parameters under 50 Hz condition only. Nevertheless, the motors can run at either 50 Hz or 60 Hz, with synchronous speed ranging from 500 rpm to 3600 rpm.
The power scope covered in this catalogue reaches up to 8,000 kW, while the full product portfolio can achieve maximum output power of 23,000 kW.
Below are standard mounting forms for AMI motors. Other mounting configurations are available upon customer request.
Weather‑protected design equipped with shaft‑driven internal cooling fan. The structural design minimizes ingress of rain, snow and airborne particles into electrical components.
Air intake velocity is controlled below 3 m/s to precipitate heavy particles. The air flow path contains three over‑90° sharp direction turns to optimize airflow. The motor offers protection against splashing water from all directions.
Totally‑enclosed structure fitted with air‑to‑air heat exchanger. Shaft‑driven fans are installed inside and outside the enclosure for internal and external cooling circuits respectively. Provides protection against dust and omnidirectional splashing water.
Fully‑enclosed motor equipped with air‑to‑water heat exchanger. An internal shaft‑driven fan serves the inner cooling circuit. Dust‑proof and resistant to splashing water from all directions.
Equipped with air inlet and outlet connections for remote cooling air supply. It is basically an AMI motor base without top cover. Dust‑proof and resistant to splashing water from all directions.
IC01 version with asymmetric internal air circulation.
Export‑oriented standard seaworthy packaging, adopting plywood or fumigated wooden cases. Suitable for long‑distance sea and land transportation.
Standard warranty term: 12 months upon commissioning or 18 months after delivery, whichever occurs earlier. Extended warranty service is available. Please contact us for further information.
