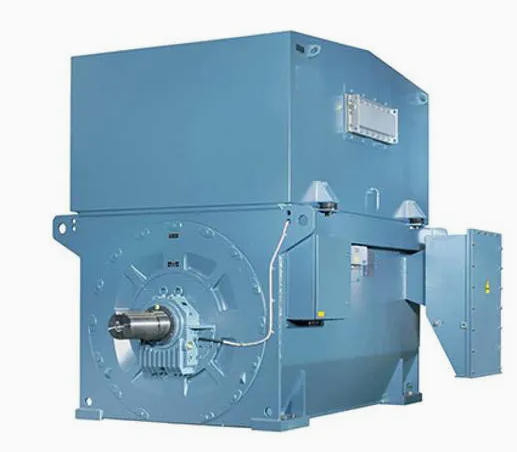

1800 to 2500kW 6000V 12 Pole HV Induction Motor for Fan Pump Blower Mill AMI 630L12A B 3 Phase Asynchronous

INQUIRY EMAIL

Basic Information

Item	Details	Item	Details
Model NO.	AMI 630L12A B	Number of Stator	Three-Phase
Species	Ami Series	Rotor Structure	Squirrel-Cage
Casing Protection	Closed Type	Number of Poles	2p-12p
Starting Mode	Direct on-line Starting	Certification	ISO9001, CCC, CE
Rated Power	up to 8000kw	Frequency	50Hz, 60Hz
Voltage	3kv, 6kv, 10kv	Frame Size	400-630mm
Cooling Method	IC01/IC611/IC81W/IC31	Mounting Arrangement	Imb3/Imv1
Rotation Direction	Cw/Ccw	Duty Type	S1
Insulation Class	F	Temperature Rise	B
Ambient Temperature	-20 up to 50	Installation Site	Indoor/Outdoor
Protection	IP24/IP55	Space Heater	Yes
Temperature Sensor	Yes	Transport Package	Standard Seaworthy Packing
Origin	China	HS Code	8501530090
Production Capacity	8000

Product Description

1. Product Overview
The AMI series modular induction motors are engineered to provide high reliability and availability in the toughest and most demanding industrial applications. Built on the motor industry's most successful modular platform, these tailor-made motors match a broad variety of application requirements while offering the flexibility to be adapted to highly specific configurations. They comply with all relevant international standards and are available for both direct-on-line (DOL) and variable speed drive (VSD) operation.

Key features include:

Robust Construction: Welded steel frame with standard shaft heights from 400 to 630 mm.
Versatile Operation: Capable of horizontal or vertical mounting.
Broad Frequency Range: Designed for both 50 Hz and 60 Hz operation, with synchronous speeds ranging from 500 to 3600 rpm.
Extensive Power Range: Catalog outputs up to 8,000 kW, with the complete range extending up to 23,000 kW.

2. Mounting Arrangements
Standard mounting options include:

IM B3 (Code II: IM 1001): Horizontal foot mounted.
IM V1 (Code II: IM 4011): Vertical flange mounted (free shaft end facing downwards).
Note: Other mounting arrangements are available upon request.

3. Enclosure and Cooling Options
The AMI motors are available with multiple cooling and protection configurations to suit various environments:

IC01 / IP24 (Weather Protected): Features a shaft-mounted cooling fan inside the housing. The air intake path is designed with three acute direction changes exceeding 90 degrees and an average velocity not exceeding 3 m/s. This allows heavier particles to settle, effectively reducing the ingress of rain, snow, and airborne particles while protecting against splashing water from any direction.
IC611 / IP55 (Air-to-Air Cooled): A fully enclosed design with an air-to-air heat exchanger. Shaft-mounted fans are fitted both inside and outside the casing to supply separate cooling circuits, providing full protection against dust and splashing water.
IC81W / IP55 (Air-to-Water Cooled): A fully enclosed motor equipped with an air-to-water heat exchanger. An internal shaft-mounted fan supplies the internal cooling circuit, offering complete protection against dust and splashing water.
IC31 / IP55 (Remote Air Cooled): Fitted with inlet and outlet pipes for remote cooling air. This version consists of the AMI motor frame without an upper cover, maintaining protection against dust and splashing water.
IC01 (Asymmetric Circulation): Features IC01 cooling with asymmetric inside air circulation.

4. Packaging
All motors are shipped in standard seaworthy packaging suitable for long-distance transportation by sea or land. Options include plywood packages or wooden fumigation packages.

5. Warranty
The standard warranty is 12 months after commissioning or 18 months after delivery, whichever comes first. Extended warranty periods are available upon request; please contact us for further details.
