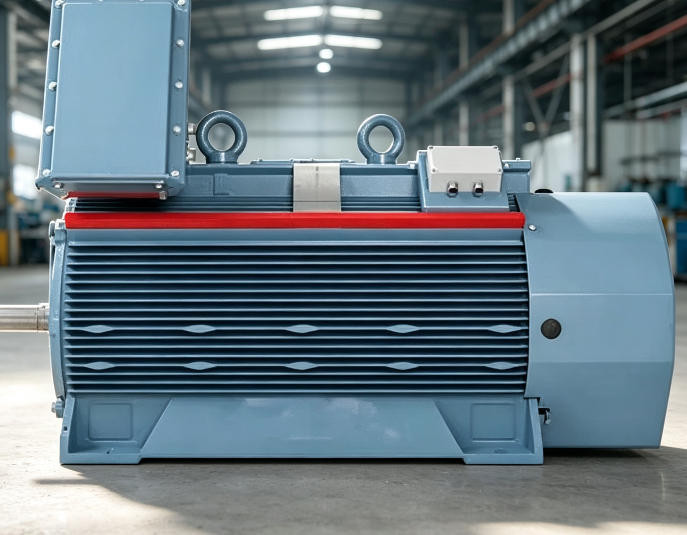

3300kW 50Hz IC411 Rib-Cooled Electric Induction Motor, Frame Size 450-560

INQUIRY EMAIL

Basic Information Table

Parameter Category	Parameter Item	Parameter Value	Remarks
Product Identification	Product Series	AXR Series Rib-Cooled High Voltage Three-Phase Induction Motor	-
Product Identification	Standard Model	AXR355MG2	Customizable
Product Identification	Country of Origin	China	-
Product Identification	HS Code	8501530090	-
Electrical Parameters	Rated Power	Up to 1800kW	Covers the full power range of the series
Electrical Parameters	Rated Frequency	50Hz / 60Hz	Optional
Electrical Parameters	Rated Voltage	3kV / 6kV / 10kV	Optional
Electrical Parameters	Number of Poles	2P/4P/6P/8P/10P/12P	Synchronous speed 500-3600rpm
Electrical Parameters	Starting Mode	Direct on-line Starting	-
Electrical Parameters	Duty Type	S1 Continuous Duty	-
Electrical Parameters	Insulation Class / Temperature Rise	Class F Insulation / Class B Temperature Rise	-
Structural Parameters	Frame Size	315-710mm	Optional
Structural Parameters	Rotor Structure	Squirrel-Cage	-
Structural Parameters	Casing Protection	Closed Type	-
Structural Parameters	Mounting Arrangement	IM B3 (Horizontal Foot Mounted) / IM V1 (Vertical Flange Mounted) / IM B35 (Horizontal & Vertical Dual-purpose)	Optional
Structural Parameters	Rotation Direction	CW / CCW	Optional
Cooling & Protection	Cooling Method	IC411 (Self-fan Cooling) / IC416 (Independent Fan Forced Air Cooling)	IC416 is suitable for low-speed/VFD applications
Cooling & Protection	Protection Rating	IP55 (Standard) / IP66 (Optional)	IP66 has been verified by a third-party authoritative organization
Operating Environment	Ambient Temperature	-20℃~50℃	-
Operating Environment	Installation Site	Indoor / Outdoor	-
Operating Environment	Standard Accessories	Space heater, temperature sensor	Standard configuration
Certification & Compliance	Certification	ISO9001, CCC	Complies with API 541, Shell DEP and other industry standards
Production & Delivery	Transport Package	Standard export seaworthy package (plywood case / fumigated wooden case)	Suitable for long-distance sea/land transportation
Production & Delivery	Production Capacity	80,000 units/year	-
Production & Delivery	Warranty Period	12 months after commissioning or 18 months after delivery (whichever comes first), extended warranty available	-

II. Product Description

The AXR series is the latest generation of multi-purpose rib-cooled high voltage three-phase induction motors, integrating years of electric motor manufacturing experience. It features core advantages of high power density, flexible configuration, and easy maintenance, setting an industry benchmark for rib-cooled motors and achieving a higher power-to-weight ratio than any previous rib-cooled motor design.

The high power density means that for the same output power, you can often choose a motor one frame size smaller than conventional products, greatly saving installation space and fitting compact installation scenarios. The entire series complies with mainstream industry standards such as API 541 and Shell DEP, and also supports customized technical specifications per customer requirements.

The entire series adopts a rugged cast iron frame, with standard IC411 self-fan cooling and IP55 protection rating. Optional configurations include IC416 independent fan cooling and IP66 protection rating (the IP66 protection capability has been verified by an authoritative third-party testing organization). The motor series covers an output range up to 1800kW, with shaft heights from 315 to 500mm. It supports both horizontal and vertical mounting, is compatible with 50Hz/60Hz power frequency, and covers a full synchronous speed range of 500-3600rpm.

III. Mounting Arrangements

Standard mounting arrangements for AXR series motors are as follows:

IM B3 (IM 1001): Standard horizontal foot mounting with feet facing downwards, suitable for horizontal installation scenarios;
IM V1 (IM 4011): Vertical flange mounting with the flange and free shaft end facing downwards, suitable for vertical installation scenarios;
IM B35 (IM 2001): Horizontal & vertical dual-purpose foot-and-flange mounting, with the flange integrated into the end shield, equipped with a single cylindrical shaft extension and feet facing downwards, suitable for multi-scenario installation requirements.

IV. Enclosure & Cooling System

(1) Standard Cooling/Protection Combinations

1. IC411 + IP55 (Standard)

The motor is equipped with an externally mounted shaft-driven fan that uses ambient air for cooling. It effectively protects against dust ingress and water jets from any direction, and its operating principle complies with standard rib-cooled motor design specifications.

IP55 Protection Capability: Allows a small amount of dust to enter the enclosure but will not affect normal motor operation; can withstand water spray from nozzles in any direction with no harmful effects.

2. IC416 + IP55 (Optional)

Equipped with an independently motor-driven cooling fan that provides sufficient cooling air volume for low-speed operating scenarios, especially suitable for low-speed applications powered by variable frequency drives (VFDs).

3. IP66 Protection (Optional)

Dust Protection: The enclosure is completely dust-tight with no dust ingress;
Water Protection: Can withstand powerful water jets from a 12.5mm nozzle in any direction with no harmful effects.

(2) Cooling Principle (IC411)

Frame Surface Cooling: The primary coolant circulates in a closed circuit inside the motor, transferring heat to the external environment coolant through the outer surface of the frame (including the stator core and other thermally conductive components). The frame surface features a ribbed design to significantly improve heat dissipation efficiency;
Self-Circulation Cooling: The circulation of the coolant is driven by the motor rotor speed, realized through rotor-mounted cooling components or a fan directly connected to the rotor, requiring no additional power source.

V. Packaging & Warranty

Packaging: Standard export seaworthy packaging is adopted, with optional plywood cases or fumigated wooden cases. It fully meets long-distance sea and land transportation requirements, effectively protecting against bumps, moisture, and other issues during transit;
Warranty: The standard warranty period is 12 months after commissioning or 18 months after delivery (whichever comes first). Extended warranty periods are available; please contact us to discuss specific plans if needed.
