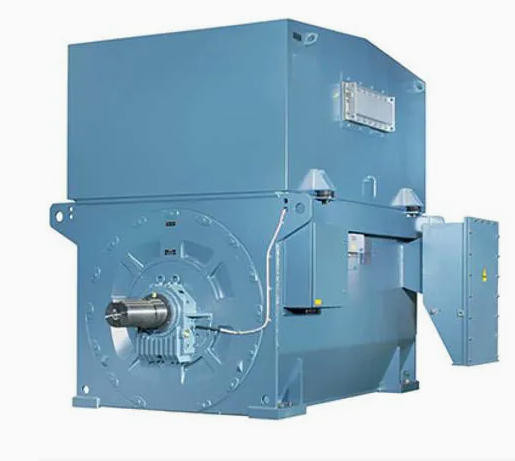

AMI 450L10A 400 to 650kW 6kV 10 Pole 50Hz Three Phase High Voltage Induction Motor for Cement Plant Applications

INQUIRY EMAIL

Engineered for reliability and availability in the toughest and most demanding industrial applications, the AMI series modular induction motors are tailor-made to meet specific customer needs. Built on the motor industry's most successful modular platform, these motors feature a welded steel frame and comply with all relevant international standards.

Product Attributes

Attribute	Value	Attribute	Value
Brand	ABB	Model NO.	AMI 450L10A
Species	AMI Series	Application	Industrial
Rated Power	Up to 8,000 kW	Number of Poles	2–12p
Voltage	3kV / 6kV / 10kV	Frequency	50Hz / 60Hz
Frame Size	400–630 mm	Number of Stator	Three-Phase
Rotor Structure	Squirrel-Cage	Starting Mode	Direct on-line (DOL)
Operating Speed	Constant Speed	Duty Type	S1
Insulation Class	F	Temperature Rise	B
Ambient Temperature	-20°C to 50°C	Casing Protection	Closed Type
Cooling Method	IC01 / IC611 / IC81W / IC31	Protection	IP24 / IP55
Mounting Arrangement	IMB3 / IMV1	Rotation Direction	CW / CCW
Space Heater	Yes	Temperature Sensor	Yes
Installation Site	Indoor / Outdoor	Customization	Available
Certification	ISO9001, CCC	Origin	China
HS Code	8501530090	Production Capacity	8,000
Transport Package	Standard Seaworthy Packing

Mounting Arrangements

Standard mounting arrangements for AMI motors. Other mountings are available on request.

IM B3 (Code II: IM 1001): Horizontal foot mounted
IM V1 (Code II: IM 4011): Vertical flange mounted (free shaft end facing downwards)

️ Enclosure and Cooling Options

The AMI series offers multiple cooling and protection configurations to suit diverse operating environments:

IC01 / IP24 — Weather-protected motor with a shaft-mounted cooling fan inside the housing. The air intake path is designed with three acute direction changes exceeding 90° and an average velocity not exceeding 3 m/s, reducing the ingress of rain, snow, and airborne particles. Protected against splashing water from any direction.
IC611 / IP55 — Fully enclosed design with an air-to-air heat exchanger mounted on the motor. Shaft-mounted fans are fitted both inside and outside the casing for independent cooling circuits. Protected against dust and splashing water from any direction.
IC81W / IP55 — Fully enclosed motor fitted with an air-to-water heat exchanger. A shaft-mounted fan supplies the internal cooling circuit. Protected against dust and splashing water from any direction.
IC31 / IP55 — Fitted with inlet and outlet pipes for remote cooling air. Essentially the AMI motor frame without an upper cover. Protected against dust and splashing water from any direction.
IC01 (Asymmetric) — Features asymmetric inside air circulation for specialized cooling requirements.

Packaging

Standard seaworthy package for export
Plywood package or wooden fumigation package
Suitable for long-distance transportation by sea or land

️ Warranty Period

Standard warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.
Extended warranty periods are available upon request — please contact us for details.
