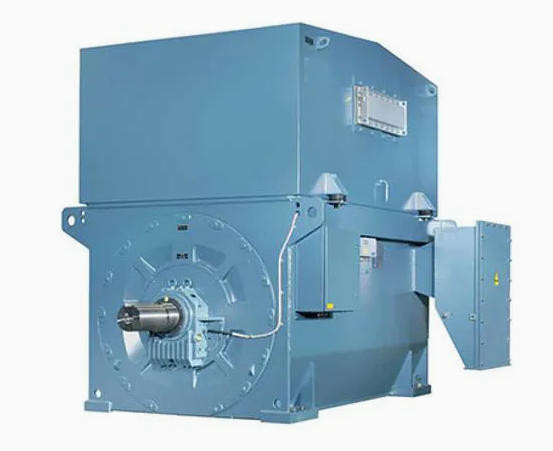

AMI 450L2A Three Phase High Voltage Squirrel Cage Induction Motor 1250kW 1800kW 6000V 50Hz 3000rpm IP55 IC611

INQUIRY EMAIL

Product Attributes

Attribute	Details	Attribute	Details
Brand	ABB	Model NO.	AMI 450L2A
Species	AMI Series	Application	Industrial
Number of Stator	Three-Phase	Rotor Structure	Squirrel-Cage
Number of Poles	2-12p	Operating Speed	Constant Speed
Starting Mode	Direct on-line Starting	Duty Type	S1
Rated Power	Up to 8000kW	Voltage	3kV, 6kV, 10kV
Frequency	50Hz, 60Hz	Frame Size	400-630mm
Cooling Method	IC01/IC611/IC81W/IC31	Mounting Arrangement	IMB3/IMV1
Rotation Direction	CW/CCW	Insulation Class	F
Temperature Rise	B	Ambient Temperature	-20 up to 50°C
Casing Protection	Closed Type	Protection Rating	IP24/IP55
Installation Site	Indoor/Outdoor	Space Heater	Yes
Temperature Sensor	Yes	Certification	ISO9001, CCC
Customization	Available	Origin	China
HS Code	8501530090	Production Capacity	8000
Transport Package	Standard Seaworthy Packing

Enclosure and Cooling Methods

The AMI series offers versatile cooling solutions to suit different environmental conditions:

IC01 / IP24 (Weather Protected)

This motor features a shaft-mounted cooling fan inside the housing. The design reduces the ingress of rain, snow, and airborne particles into electrical parts.

Air Intake: Average velocity does not exceed 3 m/s, allowing heavier particles to settle.
Path Design: Includes three acute direction changes (>90 degrees) to optimize flow rate.
Protection: Protected against splashing water from any direction.

IC611 / IP55 (Air-to-Air Heat Exchanger)

A fully enclosed design fitted with an air-to-air heat exchanger mounted on the motor.

Cooling: Shaft-mounted fans are fitted both inside and outside the casing to supply respective cooling circuits.
Protection: Protected against dust and splashing water from any direction.

IC81W / IP55 (Air-to-Water Heat Exchanger)

A fully enclosed motor fitted with an air-to-water heat exchanger.

Cooling: A shaft-mounted fan is fitted inside the casing to supply the internal cooling circuit.
Protection: Protected against dust and splashing water from any direction.

IC31 / IP55 (Remote Cooling Air)

This version is fitted with inlet and outlet pipes to utilize remote cooling air.

Design: Essentially the AMI motor frame without an upper cover.
Protection: Protected against dust and splashing water from any direction.

Mounting Arrangements

Standard mounting arrangements for AMI motors include:

IM B3 (Code II: IM 1001): Horizontal foot-mounted.
IM V1 (Code II: IM 4011): Vertical flange-mounted (free shaft end facing downwards).

Note: Other mounting arrangements are available upon request.

Packaging and Warranty

Packaging

Standard seaworthy package for export.
Plywood package or wooden fumigation package.
Suitable for long-distance transportation by sea or land.

Warranty Period

Standard: 12 months after commissioning, or 18 months after delivery, whichever comes first.
Extension: Extended warranty periods are available upon request.
