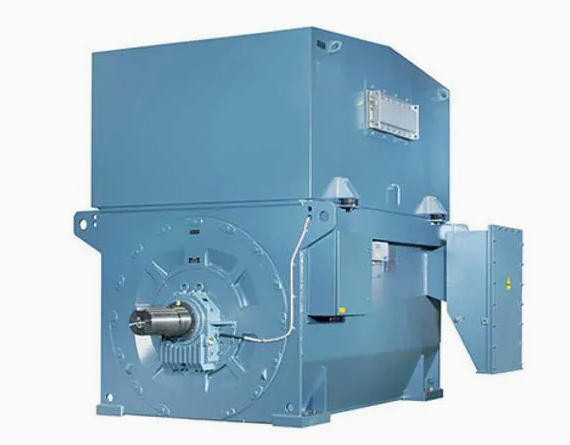

Basic Information
|
Parameter
|
Specification
|
Parameter
|
Specification
|
|
Number of Stator
|
Three-Phase
|
Species
|
AMI Series
|
|
Rotor Structure
|
Squirrel-Cage
|
Casing Protection
|
Closed Type
|
|
Number of Poles
|
2P to 12P
|
Starting Mode
|
Direct on-line Starting
|
|
Certification
|
ISO9001, CCC, CE
|
Rated Power
|
Up to 8000kW
|
|
Frequency
|
50Hz / 60Hz
|
Voltage
|
3kV / 6kV / 10kV
|
|
Frame Size
|
400 to 630mm
|
Cooling Method
|
IC01 / IC611 / IC81W / IC31
|
|
Mounting Arrangement
|
IMB3 / IMV1
|
Rotation Direction
|
CW / CCW
|
|
Duty Type
|
S1
|
Insulation Class
|
F
|
|
Temperature Rise
|
B
|
Ambient Temperature
|
-20°C to +50°C
|
|
Installation Site
|
Indoor / Outdoor
|
Protection
|
IP24 / IP55
|
|
Space Heater
|
Yes
|
Temperature Sensor
|
Yes
|
|
Transport Package
|
Standard Seaworthy Packing
|
Origin
|
China
|
|
HS Code
|
8501530090
|
Production Capacity
|
8000 Units
|
Enclosure and Cooling Options
IC01 / IP24W
Weather
protected motor with a shaft mounted cooling fan inside the housing.
The air intake path is designed with three acute direction changes
exceeding 90 degrees, ensuring average air velocity does not exceed 3
m/s. This allows heavier particles to settle before reaching electrical
components, providing protection against rain, snow, airborne particles,
and splashing water from any direction.
IC611 / IP55
Fully
enclosed design with an air-to-air heat exchanger mounted on the motor.
Shaft mounted fans are fitted both inside and outside the casing to
supply independent internal and external cooling circuits. Protected
against dust ingress and splashing water from any direction.
IC81W / IP55
Fully
enclosed motor fitted with an air-to-water heat exchanger. A shaft
mounted fan inside the casing supplies the internal cooling circuit.
Protected against dust ingress and splashing water from any direction.
IC31 / IP55
Fitted
with inlet and outlet pipes for remote cooling air supply. This version
uses the AMI motor frame without an upper cover. Protected against dust
ingress and splashing water from any direction.
Mounting Arrangements
Standard mounting arrangements are available as follows:
-
IMB3 (IM 1001): Horizontal foot mounted
-
IMV1 (IM 4011): Vertical flange mounted, free shaft end facing downwards
Other mounting configurations are available upon request.
Packaging
Standard
seaworthy export packaging is provided, including plywood or wooden
fumigation packages, suitable for long distance transportation by sea or
land.
Warranty
Standard
warranty covers 12 months after commissioning or 18 months after
delivery, whichever comes first. Extended warranty periods are available
upon request.
