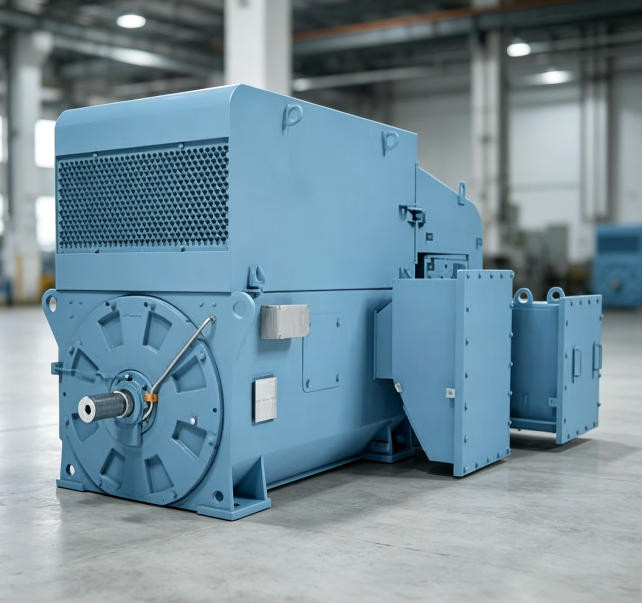

NMK slip-ring motors are engineered for heavy load inertia applications that demand high starting torque with low starting current. Their modular design minimizes mechanical stress during startup, extending the service life of driven equipment while delivering consistent high torque across the full speed range.
These motors are widely deployed in mills, crushers, fans, and conveyors across the mining, cement, and metal industries, as well as in pumps, compressors, and mixers for the water and petrochemical sectors.
Basic Information
|
Parameter
|
Specification
|
Parameter
|
Specification
|
|
Model No.
|
NMK500L4A
|
Number of Stator
|
Three-Phase
|
|
Species
|
NMK Series
|
Rotor Structure
|
Winding Type
|
|
Casing Protection
|
Closed Type
|
Number of Poles
|
4P–16P
|
|
Starting Mode
|
Direct On-Line
|
Certification
|
ISO9001, CCC, CE
|
|
Rated Power
|
Up to 10,000 kW
|
Frequency
|
50Hz / 60Hz
|
|
Voltage
|
3kV / 6kV / 10kV / 13.8kV
|
Frame Size
|
400–710 mm
|
|
Cooling Method
|
IC611 / IC81W
|
Mounting Arrangement
|
IMB3 / IMV1
|
|
Rotation Direction
|
CW / CCW
|
Duty Type
|
S1
|
|
Insulation Class
|
F
|
Temperature Rise
|
B
|
|
Ambient Temperature
|
-20°C to +50°C
|
Installation Site
|
Indoor / Outdoor
|
|
Protection
|
IP55
|
Space Heater
|
Yes
|
|
Temperature Sensor
|
Yes
|
Transport Package
|
Standard Seaworthy Packing
|
|
Origin
|
China
|
HS Code
|
8501530090
|
|
Production Capacity
|
8,000 units
|
—
|
—
|
Product Features
-
Welded steel frame with slip ring unit enclosed in a separate housing at the N-end, available with permanent contact brushes or brush lifting gear.
-
Liquid Resistance Starter (LRS) available on request.
-
Full product scope covers 60Hz operation, pole numbers up to 16, and voltage ratings up to 13.8kV.
Mounting Arrangements
|
Code
|
Arrangement
|
|
Code I: IM B3
|
Horizontal foot mounted
|
|
Code II: IM 1001
|
Horizontal foot mounted
|
Other mounting configurations (e.g., IM1002) are available on request.
Enclosure & Cooling
IC611 / IP55
Air-to-air heat exchanger mounted on the motor in a fully enclosed design. Shaft-mounted fans are fitted both inside the motor frame and slip ring housing, as well as outside the casing, to supply the internal and external cooling circuits. The motor is protected against dust and splashing water from any direction.
IC81W / IP55
Totally enclosed design with machine-mounted and SRU housing-mounted air-to-water heat exchangers. A shaft-mounted fan inside the casing supplies the internal cooling circuit. Protected against dust and splashing water from any direction.
Other cooling methods such as IC616 and IC86W are available on request.
Packaging
-
Standard seaworthy export package
-
Plywood or wooden fumigation package
-
Suitable for long-distance transportation by sea or land
Warranty
Standard warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first. Extended warranty periods are available upon request.
