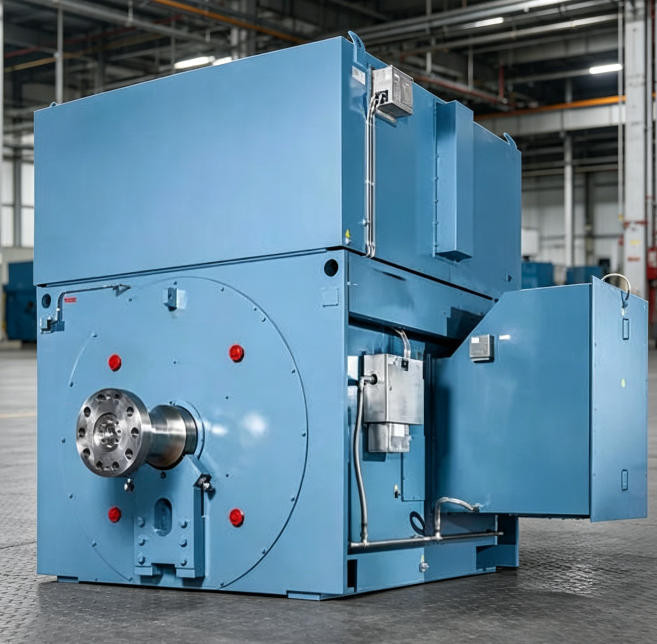

Three Phase AC Electric Induction Motor 12 Pole 3000V 50Hz IP24W IC01 1120kw to 2000kw Ami560L12W B Frame

INQUIRY EMAIL

Basic Information

Item	Specification	Item	Specification
Model NO.	AMI 560L12W B	Number of Stator	Three-Phase
Species	Ami Series	Rotor Structure	Squirrel-Cage
Casing Protection	Closed Type	Number of Poles	2p-12p
Starting Mode	Direct on-line Starting	Certification	ISO9001, CCC, CE
Rated Power	Up to 8000kW	Frequency	50Hz, 60Hz
Voltage	3kV, 6kV, 10kV	Frame Size	400-630mm
Cooling Method	IC01/IC611/IC81W/IC31	Mounting Arrangement	IMB3 / IMV1
Rotation Direction	CW / CCW	Duty Type	S1
Insulation Class	F	Temperature Rise	B
Ambient Temperature	-20°C up to 50°C	Installation Site	Indoor / Outdoor
Protection Level	IP24 / IP55	Space Heater	Yes
Temperature Sensor	Yes	Transport Package	Standard Seaworthy Packing
Origin	China	HS Code	8501530090
Production Capacity	8000 Units

2. Product Description

AMI engineered modular induction motors are tailor-made to provide high reliability and availability in the toughest and most demanding applications. Built on the motor industry's most successful modular platform, these motors match a broad variety of application requirements while offering the flexibility to be adapted to highly specific configurations.

Standards & Operation: Comply with all relevant international standards. Available for both direct-on-line (DOL) and variable speed drive (VSD) operation.
Frame & Mounting: Feature a welded steel frame with standard shaft heights from 400 to 630 mm. Can be mounted horizontally or vertically.
Performance Range: While this catalog highlights 50 Hz technical data, the motors operate at both 50 Hz and 60 Hz with synchronous speeds from 500 to 3600 rpm. Output powers covered range up to 8,000 kW, with the complete range extending up to 23,000 kW.

3. Mounting Arrangements

Standard mounting arrangements for AMI motors include:

IM B3 (Code II: IM 1001): Horizontal foot mounted.
IM V1 (Code II: IM 4011): Vertical flange mounted (free shaft end facing downwards).
Note: Other mounting arrangements are available upon request.

4. Enclosure and Cooling Options

AMI motors are available with the following standard cooling methods and protection types:

IC01 / IP24W (Weather Protected): Features a shaft-mounted cooling fan inside the housing. The air intake path is designed with three acute direction changes (>90°) and an average velocity not exceeding 3 m/s, allowing heavier particles to settle. Protects against rain, snow, airborne particles, and splashing water from any direction.
IC611 / IP55 (Air-to-Air): Fully enclosed design with an air-to-air heat exchanger. Equipped with shaft-mounted fans both inside and outside the casing for dual cooling circuits. Protected against dust and splashing water.
IC81W / IP55 (Air-to-Water): Fully enclosed motor fitted with an air-to-water heat exchanger and an internal shaft-mounted fan. Protected against dust and splashing water.
IC31 / IP55 (Remote Cooling Air): Fitted with inlet and outlet pipes for remote cooling air. Essentially the AMI motor frame without an upper cover. Protected against dust and splashing water.

5. Packaging

Standard seaworthy package for export.
Plywood package or wooden fumigation package.
Fully suitable for long-distance transportation by sea or land.

6. Warranty Period

Standard Warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.
Extended Warranty: Available upon request. Please contact us for more details.
