12 Pole Rib Cooled Electric Motor 800kw to 1100kw Cement Plant Use

INQUIRY EMAIL

Basic Information

Item	Specification	Item	Specification
Model No.	HXR 560 LN12	Stator Phase	Three-Phase
Product Series	HXR 560 Series	Rotor Structure	Squirrel-Cage
Enclosure Type	Totally Enclosed (TEFC)	Number of Poles	2p–12p
Starting Mode	Direct On-Line (DOL)	Certification	ISO9001, CCC
Rated Power	Up to 2250 kW	Frequency	50 Hz / 60 Hz
Rated Voltage	3 kV / 6 kV / 10 kV	Frame Size	560 mm
Cooling Method	IC411 / IC416	Mounting Arrangement	IM B3 / IM V1
Rotation Direction	CW / CCW	Duty Type	S1 (Continuous)
Insulation Class	F	Temperature Rise	B
Ambient Temperature	−20 °C to +50 °C	Installation Site	Indoor / Outdoor
Protection Class	IP55 / IP66	Space Heater	Yes
Temperature Sensor	Yes	HS Code	8501530090
Transport Packaging	Standard Seaworthy Packing	Origin	China
Production Capacity	80,000 units	Warranty	12 months after commissioning / 18 months after delivery (whichever comes first)

1. Product Overview

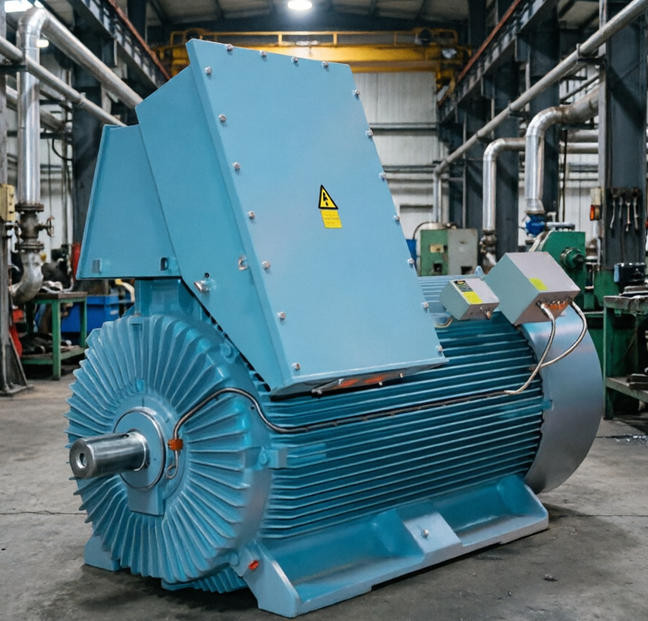

The HXR 560 is a rib-cooled induction motor built on a rugged cast-iron frame, engineered for heavy-duty cement plant and industrial applications. Operating as a totally enclosed, fan-cooled (TEFC) machine, it comes standard with IC411 cooling and IP55 ingress protection, and can be upgraded to IC416 cooling and IP66 protection on request.

Delivering up to 2,250 kW across a shaft height of 560 mm, the motor supports both horizontal and vertical installation. While this catalog lists technical data at 50 Hz, the HXR series runs equally well at 60 Hz, achieving synchronous speeds from 500 to 3,600 rpm.

2. Mounting Arrangements

Two standard mounting configurations are available:

表格

Code	Designation	Description
IM B3 / IM 1001	Horizontal Foot Mount	Frame mounted on a baseplate with feet facing downward
IM V1 / IM 3011	Vertical Flange Mount	Flange and free shaft end face downward (solid vertical shaft)

3. Enclosure and Cooling Options

IC411 / IP55 (Standard) — A shaft-mounted external fan draws ambient air across the ribbed frame for cooling. The motor is protected against dust ingress and water jets from any direction.

IC416 / IP55 — Adds an independent cooling fan drive, ensuring adequate ventilation for low-speed operation and variable-speed-drive (VFD) applications where self-ventilation would otherwise be insufficient.

Protection Ratings

IP55 — Limited dust entry that cannot interfere with normal operation; water jets from any direction cause no harmful effect.
IP66 — Fully dust-tight enclosure; resistant to powerful water jets (12.5 mm nozzle) from any direction.

Cooling Principle (IC411) — Heat generated in the windings and core is transferred through the ribbed frame surface to the surrounding air. The primary coolant circulates in a closed internal circuit, while the frame's ribs—with or without an outer shroud—maximize heat dissipation. Coolant movement relies on the main rotor's rotation, either directly or via a fan mechanically coupled to the rotor shaft.

4. Packaging

Motors are supplied in standard export-grade packaging: plywood crates or fumigated wooden cases, engineered for long-distance sea and land transport.

5. Warranty

Standard coverage is 12 months after commissioning, or 18 months after delivery—whichever occurs first. Extended warranty options are available on request; please contact us for details.
