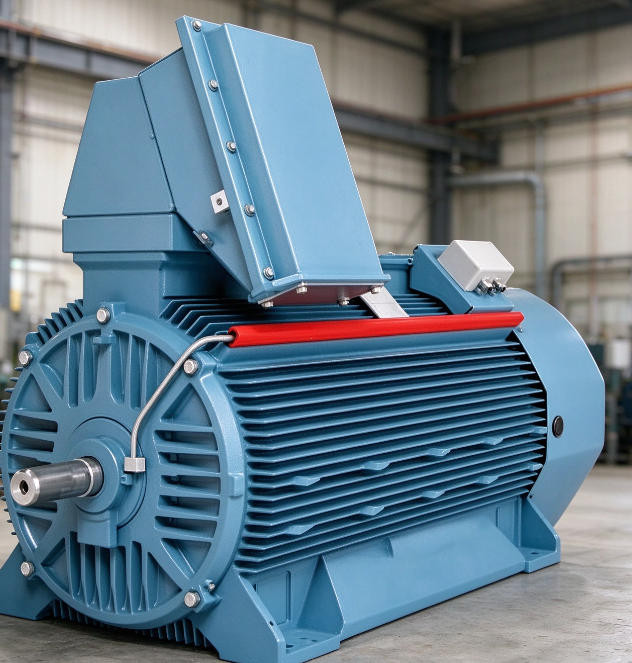

1250kw IC411 High Voltage Electric Induction Motor IP55 6 Poles 3000V

INQUIRY EMAIL

Basic Information

Item	Specification	Item	Specification
Model No.	AXR 500MP6	Number of Stator Phases	Three-Phase
Series	AXR Series	Rotor Structure	Squirrel-Cage
Casing Protection	Closed Type	Number of Poles	2P, 4P, 6P, 8P, 10P, 12P
Starting Mode	Direct-On-Line (DOL) Starting	Certification	ISO9001, CCC
Rated Power	Up to 1,800 kW	Frequency	50 Hz / 60 Hz
Rated Voltage	3 kV / 6 kV / 10 kV	Frame Size	315–710 mm
Cooling Method	IC411 / IC416	Mounting Arrangement	IM B3 / IM V1
Rotation Direction	CW / CCW	Duty Type	S1 (Continuous)
Insulation Class	F	Temperature Rise	Class B
Ambient Temperature	–20 °C to +50 °C	Installation Site	Indoor / Outdoor
Protection Rating	IP55 / IP66	Space Heater	Yes (Optional)
Temperature Sensor	Yes (Optional)	Transport Package	Standard Seaworthy Packing
Place of Origin	China	HS Code	8501530090
Production Capacity	80,000 units / year	Warranty	12 months after commissioning, or 18 months after delivery, whichever comes first

Mounting Arrangements

Standard mounting configurations for AXR motors:

IM B3 (IM 1001) — Standard floor mounting, feet facing downwards (horizontal, foot-mounted).
IM V1 (IM 4011) — Flange and free shaft end facing downwards (vertical solid shaft, flange-mounted).
IM B35 (IM 2001) — Foot-and-flange-mounted horizontal, with the flange on the end-shield, one cylindrical shaft extension, and feet facing downwards.

Enclosure and Cooling

Standard Combinations

IC411 / IP55 — Fitted with an external shaft-mounted fan that draws surrounding air for cooling. The motor is protected against dust ingress and water jets.
IC416 / IP55 — Available with IC416 cooling, using a separately driven cooling fan. Ideal for low-speed applications, particularly when the motor is supplied by a variable speed drive (VSD).

Protection Ratings

IP55 — Dust-protected (limited dust ingress that does not interfere with operation); protected against water jets projected from any direction.
IP66 — Dust-tight enclosure; protected against powerful water jets (12.5 mm nozzle) from any direction.

Cooling Principle (IC411)

The frame surface is cooled: the primary coolant circulates in a closed circuit inside the motor, transferring heat through the external surface (in addition to heat transfer via the stator core and other conducting parts) to the surrounding medium as the final coolant. The surface may be plain or ribbed, with or without an outer shell for improved heat transfer. In self-ventilated (self-circulation) mode, coolant movement depends on the rotor speed of the main motor, either through the action of the rotor alone, a component mounted directly on the rotor, or a fan/pump unit driven mechanically by the main motor.

Packaging

Standard seaworthy export packaging
Plywood or fumigated wooden crates
Suitable for long-distance transportation by sea or land

Warranty

Standard warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first.
Extended warranty available upon request — contact us for details.
