1500kw 3000V IC411 Rib Cooled Induction Motor IP55 4 Poles

INQUIRY EMAIL

Basic Information

Parameter	Value	Parameter	Value
Model No.	AXR500MP4	Number of Phases	Three-Phase
Series	AXR Series	Rotor Structure	Squirrel-Cage
Casing Protection	Closed Type	Number of Poles	2P, 4P, 6P, 8P, 10P, 12P
Starting Mode	Direct-On-Line	Certification	ISO9001, CCC
Rated Power	Up to 1800 kW	Frequency	50 Hz / 60 Hz
Rated Voltage	3 kV / 6 kV / 10 kV	Frame Size	315–710 mm
Cooling Method	IC411 / IC416	Mounting Arrangement	IM B3 / IM V1
Rotation Direction	CW / CCW	Duty Type	S1
Insulation Class	F	Temperature Rise	B
Ambient Temperature	−20 °C to +50 °C	Installation Site	Indoor / Outdoor
Protection Rating	IP55 / IP66	Space Heater	Yes
Temperature Sensor	Yes	Transport Package	Standard Seaworthy Packing
Place of Origin	China	HS Code	8501530090
Production Capacity	80,000 units	—	—

Product Description

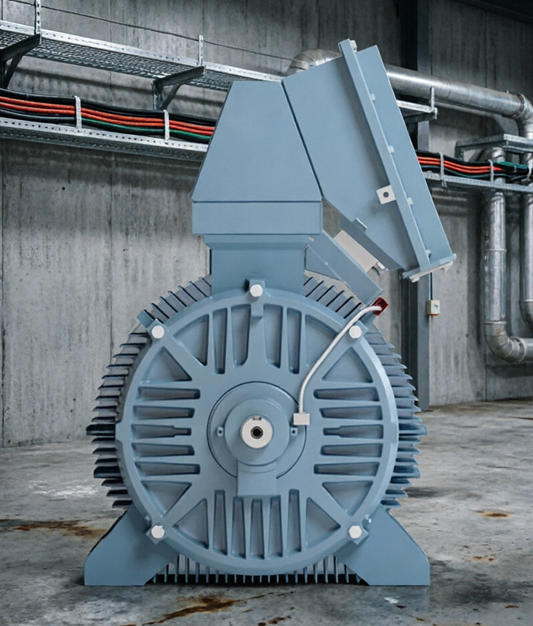

The AXR series is the latest generation of multipurpose rib-cooled motors, delivering high power density, easy configuration and built-in serviceability. Building on decades of electric motor manufacturing experience, these motors set a new industry benchmark by achieving more watts per kilogram than any previous rib-cooled design.

Thanks to this high power density, a given output can often be delivered in a frame size one step smaller than conventional motors, saving space and enabling more compact installations. AXR motors comply with major industry standards including API 541 and Shell DEP, as well as customer-specific specifications.

Key features:

Rugged cast-iron frame.
Rib-cooled design with IC411 cooling and IP55 protection as standard.
Optional IC416 cooling and IP66 protection (independently verified by a leading testing organization).
Output range up to 1,800 kW; shaft heights from 315 to 500 mm.
Horizontal and vertical mounting options.
Technical data provided for both 50 Hz and 60 Hz operation, with synchronous speeds from 500 to 3,600 rpm.

Mounting Arrangements

Standard mounting arrangements for AXR motors:

Code I	Code II	Description
IM B3	IM 1001	Standard floor mounting, feet facing downwards (horizontal foot-mounted)
IM V1	IM 4011	Flange and free shaft end facing downwards (vertical solid shaft, flange-mounted)
IM B35	IM 2001	Foot-and-flange mounted, horizontal, with the flange part of the end-shield, one cylindrical shaft extension and feet facing downwards

Enclosure and Cooling

IC411 / IP55 (standard) — AXR motors are fitted with an external shaft-mounted fan using the surrounding air for cooling. The motors are protected against dust and water jets.

IC416 / IP55 — AXR motors are also available with IC416 cooling. An additional motor drives the cooling fan, providing the cooling required for low-speed applications, particularly when the motor is fed via a variable speed drive.

Protection ratings:

IP55 — Dust protection: small amounts of dust may enter, but not enough to interfere with operation. Water-jet protection: water sprayed against the motor from any direction causes no harmful effect.
IP66 — Dust protection: enclosure is completely dust-tight. Water-jet protection: powerful jets (12.5 mm nozzle) directed against the enclosure from any direction cause no harmful effect.

Cooling method (IC411):

Frame surface cooled: the primary coolant circulates in a closed circuit inside the motor and transfers heat through the external surface (in addition to heat transfer via the stator core and other heat-conducting parts) to the surrounding medium. The surface may be plain or ribbed, with or without an outer shell to improve heat transfer.
Self-circulation: the coolant moves in step with the rotational speed of the main motor — either by the action of the rotor alone, by a component mounted directly on the rotor, or by a fan/pump unit mechanically driven by the rotor or main motor.

Packaging

Standard seaworthy export packaging.
Plywood or fumigated wooden package.
Suitable for long-distance transportation by sea or land.

Warranty

Standard warranty: 12 months after commissioning, or 18 months after delivery, whichever comes first. Extended warranty options are available on request — please contact us for details.
